Medical Microscope

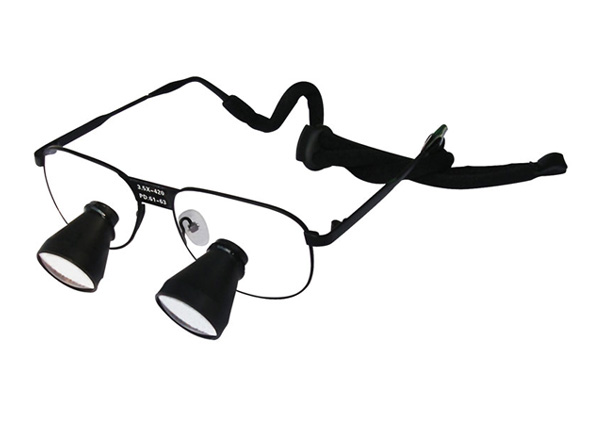

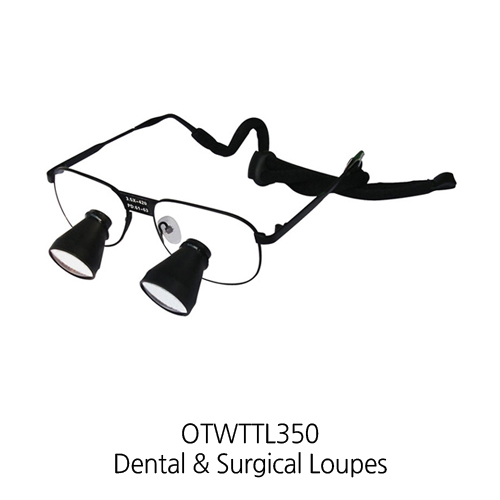

TTL Dental Surgical Loupe (3.5X)
OTWTTL350
TTL is “Through The Lens”, It means that the loupes are glued to your lens. Although TTL is slightly lighter than Flip-Up system, it can not be moved from line of vision and the user can not make adjustments to the angle of declination to accommodate for the patient’ s position. And since each pair of TTL loupes is custom made, it is much more expensive than the Flip-Up loupes. The loupes Through The Lens are light weight, and laconic appearance.It has fashionable design and comparable with designer frames.
• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
|
Model
|
Power
|
Working Distance
|
Field of View
|
Depth of Field
|
Weight
|
|
OTMTTL350S
|
3.5x
|
340mm / 13,4 in
|
50mm / 2 in
|
50mm / 2.0 in
|
73gr / 2.36 ounce
|
|
OTMTTL350R
|
3.5x
|
420mm / 16.5 in
|
55mm / 2.2 in
|
55mm / 2.2 in
|
73gr / 2.36 ounce
|
|
OTMTTL350L
|
3.5x
|
500mm / 19,7 in
|
65mm / 2.6 in
|
60mm / 2.4 in
|
73gr / 2.36 ounce
|
|
OTMTTL350XL
|
3.5x
|
550mm / 21,7 in
|
70mm / 2.8 in
|
65mm / 2.6 in
|
73gr / 2.36 ounce
|
|
All Models
|
Through the lens. Adjustable viewing angle not allowed
|
||||
|
All Models
|
Pupillary distance: 58/59/60/61/62/63/64/65/66/67/68MM
|
||||
|
All Models
|
Average weight including (medium) frame: 60grams/1.9 ounce
|
||||
