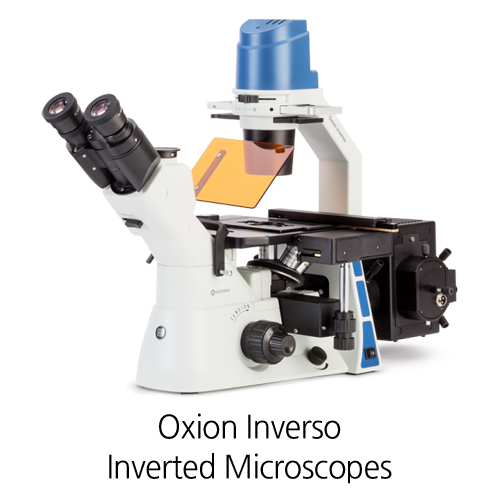

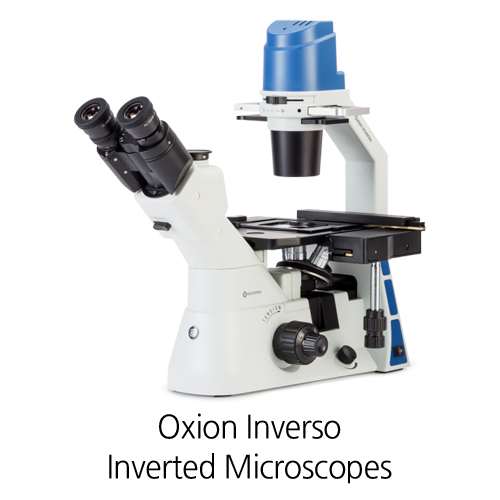

LIFE SCIENCE Inverted Microscopes
도립현미경
Oxion Inverso

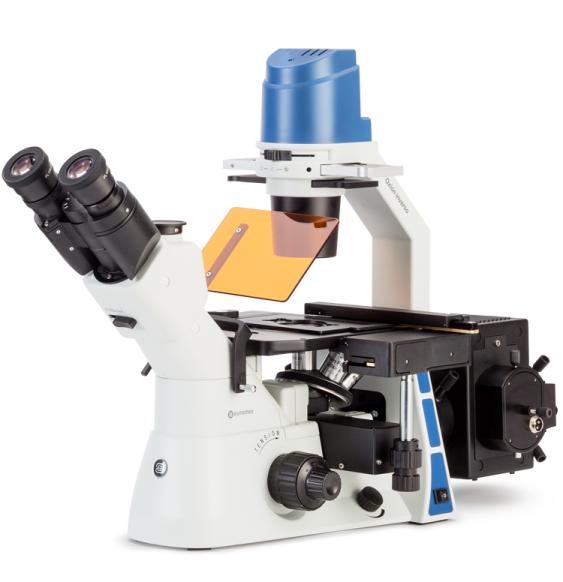

The inverted Oxion Inverso biological microscopes of Euromex are available for bright field, phase contrast and fluorescence applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes
The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks
Highlights
- Life Science applications
- Observation of tissue cultures, living cells
- Brightfield, phase contrast and fluorescence
- Long working distance IOS plan achromatic objectives
- Revolving quintuple nosepiece
- 5 W LED transmitted illumination
- 100 W mercury vapor lamp for fluorescence
- 10 years warranty
Models
Specifications
EYEPIECE(S)
Pair of DIN HWF plan 10x/22 mm eyepieces
HEADS
Trinocular 45° inclined tubes with extended low and high positions for eyepieces. One diopter adjustment on left eyepiece. Interpupillary distance of 54 to 75 mm. Trinocular head with 100-0 % and 80-20 % positions
NOSEPIECES
Revolving quintuple nosepiece on ball-bearings
OBJECTIVES FOR BRIGHTFIELD
(models OX.2003-PL and OX.2053-PL)
Infinity color corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives. An optional 60x/0.70 IOS objective is also available
OBJECTIVES FOR PHASE CONTRAST
(models OX.2003-PLPH and OX.2053-PLPH)
Infinity color corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives
(Photo: OX.9190 Slider with 4x/10x and 20x/40x phase contrast annuli)
OBJECTIVES FOR BRIGHTFIELD AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLF and OX.2453-PLF)
Infinity color corrected long working distance plan Fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives. An optional plan Fluarex 60x/0.75 IOS objective is also available
OBJECTIVES FOR PHASE CONTRAST AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLPHF and OX.2453-PLPHF)
Infinity color corrected long working distance plan fluarex 10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS objectives. All objectives corrected for 1.2 mm thickness. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGEStage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:– metallic insert for Ø 35 mm cell culture dish dishes
– 76 x 26 mm slide holder
– glass insert with hole
– optional universal cell culture dish holder
(Photo: OX.9599 Universal cell structure dish holder)
CONDENSER
N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm. The models for the phase contrast OX.2003-PLPH, OX.2053- PLPH, OX.2253-PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings
FOCUSING ADJUSTMENT
Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment
ILLUMINATION
Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V. The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield
FILTERS FOR PHASE CONTRAST MODELS
Interference filter 550 nm green and blue filter, 45 mm diameter
STANDARD FLUORESCENCE FILTERS
(for fluorescence models)
The fluorescence models OX.2253-PLF and OX.2453-PLF are standard supplied with 2 filter sets for excitation:
– in the blue spectrum,OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
– in the green spectrum, OX.9746, EX520-600 (BP) DM600 (LP) EM605-665 (BP)
The fluorescence models OX.2253-PLF and OX.2453-PLPHF equipped with a 4 positions filter rail equipped with 3 standard filter sets for excitation:
– in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
– in the green spectrum, OX.9746, EX520-600 (BP) DM600(LP) EM605-665 (BP)
– in the UV spectrum, OX.9747, EX361-381 (BP) D415 (LP) EM435-495 (BP)
STANDARD GENERAL PURPOSE FLUORESCENCE FILTERS SETS
CONFIGURATIONS
The Oxion microscope is available in many configurations and can be upgraded with a variety of contrast types.
• Do you want to see the standard models?
• Do you want to see the phase contrast models?
• Do you want to see the dark field models?
• Do you want to see the inverso (life science) models?
• Do you want to see the material science models?
• Do you want to see the inverso (material science) models?
• Do you want to see the fluorescence models?
PACKAGING
Supplied with power cord, dust cover and user manual. Phase contrast models are supplied with green filter and centering telescope
Accessories
OX.6010
Wide field eyepiece HWF 10x/22 mm
OX.6015
Wide field eyepiece HWF 15x/16 mm for Oxion Inverso inverted micrososcopes
OX.6110
Wide field eyepiece HWF 10x/22 mm with reticle for Oxion Inverso inverted micrososcopes
OX.6099
Pair of eyecups for Oxion Inverso inverted micrososcopes
OX.8304
Plan LWD 4x/0,13 IOS objective, corrected for 1,2 mm
OX.8310
Plan LWD 10x/0,30 IOS objective, corrected for 1,2 mm
OX.8320
Plan LWD 20x/0,45 IOS objective, corrected for 1,2 mm
OX.8340
Plan LWD 40x/0.65 IOS objective, corrected for 1,2 mm
OX.8360
Plan LWD 60x/0,75 IOS objective, corrected for 1,2 mm
OX.8404
Plan phase LWD 4x/0.13 infinity corrected IOS, objective, working distance 10.4 mm
OX.8410
Plan phase LWD 10x/0.25 infinity corrected IOS, objective, working distance 7.94 mm
OX.8420
Plan phase LWD 20x/0.40 infinity corrected IOS, objective, working distance 7.66 mm
OX.8440
Plan phase LWD 40x/0.60 infinity corrected IOS, objective, working distance 3.71 mm
OX.8604
Plan LWD 4x/0,13 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8610
Plan LWD 10x/0,30 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8620
Plan LWD 20x/0,45 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8640
Plan LWD 40x/0.65 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8660
Plan LWD 60x/0,75 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8720
Plan LWD Phase contrast 20x/0.40 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.8740
Plan LWD Phase contrast 40x/0.65 infinity corrected IOS Fluarex objective, corrected for 1,2 mm
OX.9149
Telescope for phase contrast alignment for Oxion Inverso inverted micrososcopes
OX.9190
Slider with 4x/10x and 20x/40x phase contrast annuli for Oxion Inverso inverted micrososcope
OX.9500
Mechanical X-Y stage, 120 x 78 mm for Oxion Inverso inverted micrososcopes
OX.9506
Transparant glass insert with hole for Oxion Inverso inverted micrososcopes
OX.9508
Metal insert with hole for Oxion Inverso inverted micrososcopes
OX.9512
Insert with 76 x 26 mm slide holder and diameter 54 mm cell culture dish holder
OX.9535
Petri dish insert 35 mm for Oxion Inverso inverted micrososcopes
OX.9550
Stage extension plate
OX.9599
Universal cell culture dish holder
OX.9700
Blue filter 45 mm diameter
OX.9702
Green 550 nm filter 45 mm diameter
OX.9703
IR cut-off filter
OX.9745
Filter block with filter set for excitation in Blue spectrum EX465-495 DM505LP EM515-558
OX.9746
Filter block with filter set for excitation in Green spectrum EX520-600 DM600 EM605-665
OX.9747
Filter block with filter set for excitation in UV spectrum EX361-381 DM415 EM435-495
OX.9748
Filter block with filter set for excitation in Violet spectrum EX361-389 DM415 EM435LP
OX.9751
Empty filter block for filters and dichroic mirror for Oxion Inverso inverted microscope
OX.9753
Filter block rail, 3 positions for Oxion Inverso inverted microscope for fluorescence with 3 empty blocks
OX.9754
Filter block rail, 4 positions for Oxion Inverso inverted microscope for fluorescence
OX.9985
5 W NeoLED™ replacement unit
AE.5120
Standard 23,2 mm tube for Oxion upright (revision 2) and Oxion Inverso inverted microscopes
AE.5130
Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter
AE.5025
T2 ring for Nikon D SLR digital camera
AE.5040
T2 ring for Canon EOS SLR digital camera
AE.5057
C-mount adapter 0,5x for 1/2 inch cameras for Oxion (revision 1)
AE.5058
C-mount adapter 0,33x adapter for 1/3 inch camera for Oxion (revision 1)
OX.9833
Photo port adapter with 0,33x lens for Oxion (revision 2) and Oxion Inverso microscopes and 1/3 inch camera with C-mount
OX.9850
Photo port adapter with 0,5x lens for Oxion (revision 2) and Oxion Inverso microscopes and 1/2 inch camera with C-mount
AE.3199
Glass fuses 3.15A 250V, 10pcs
PB.5155
Microscope slides 76 x 26 mm, ground edges, 50 pieces
PB.5165
Cover glasses 18 x 18 mm, 0,13-0,17 mm, 100 pieces
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
담당자에게 카다로그 요청해주시면 메일로 보내드리겠습니다.
견적서를 메일로 받아보실 수 있습니다.
추가 정보
| OPTION | OX.2003‑PL, OX.2003‑PLPH, OX.2053‑PL, OX.2053‑PLPH, OX.2253‑PLF, OX.2253‑PLPHF, OX.2453‑PLF, OX.2453‑PLPHF |
|---|
