INDUSTRY Inverted Microscopes

도립현미경

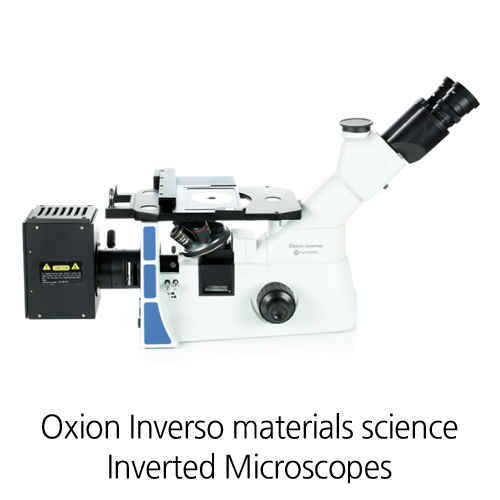

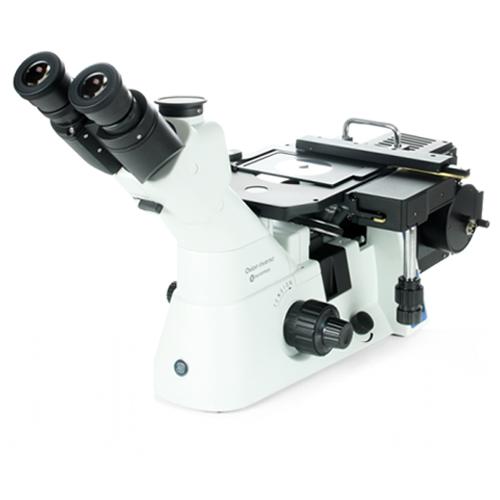

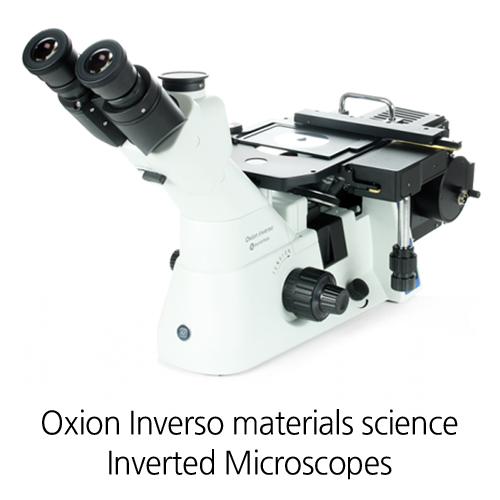

Oxion Inverso materials science

The Oxion Inverso inverted microscopes for material science are intensively used for observation of large pieces of material made from metal, wood, plastics and more

The Oxion Inverso is available with a powerful 50 W halogen brightfield contrast illumination and a large mechanical stage. The polarization and color filters makes this instrument suitable for a wide variety of applications

Highlights

• Materials Science applications
• Observation of all types of materials
• Brightfield with polarization options
• Long working IOS plan achromatic objectives
• Long working IOS plan semi apochromatic objectives
• Revolving quintuple nosepiece
• 50 W halogen Köhler illumination

Models

Specifications

EYEPIECES
Pair of DIN HWF Plan 10x/22 mm eyepieces

NOSEPIECES
Revolving quintuple nosepiece on ball-bearings

HEADS
Trinocular 45° inclined tubes with extended low and high positions for eyepieces. One diopter adjustment on left eyepiece. Interpupillary distance of 54 to 75 mm. Trinocular head with 100-0 % and 80-20 % positions

OBJECTIVES
Infinity color corrected long working distance 5x/0.15, 10x/0.14, 20x/0.45 plan achromatic IOS objectives and a plan semi apochromatic S50x/0.55 IOS objective. Model OX.2153-PLM also has plan semi apochromatic S100x/0.80 IOS objective. Not corrected for cover glass thickness.

All optics are anti-fungus treated and anti-reflection coated for maximum light troughout

STAGE
Large stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:
– metallic insert standard with Ø 12 mm diameter hole and Ø 25 mm diameter hole
– metallic insert with hole for mechanical stage

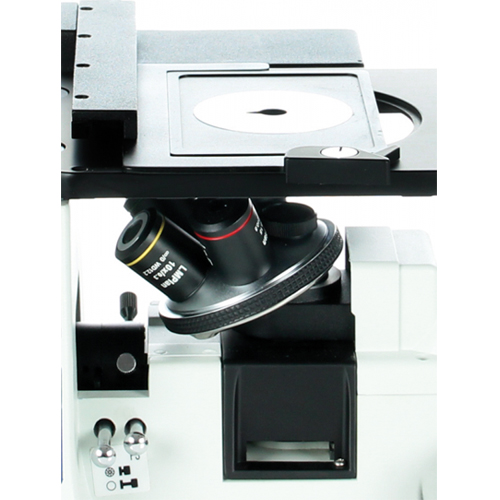

(Photo: Large stage with X-Y mechanical stage)

CONDENSER
Abbe condenser with iris diaphragm

FOCUSING ADJUSTMENT
Coaxial 25 mm coarse and fine adjustments, 2 µm precision and with friction adjustment

ILLUMINATION
Transmitted Köhler 50 W halogen Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V

POLARIZATION
Standard polarization filter and 360° rotating analyzer

FILTERS
Standard blue and green filter

CONFIGURATIONS
The Oxion microscope is available in many configurations and can be upgraded with a variety of contrast types.

• Do you want to see the standard models?
• Do you want to see the phase contrast models?
• Do you want to see the dark field models?
• Do you want to see the inverso (life science) models?
• Do you want to see the material science models?
• Do you want to see the inverso (material science) models?
• Do you want to see the fluorescence models?

PACKAGING
Supplied with power cord, dust cover, blue and green filters and  user manual.  Microscope supplied in an aluminium transport case
