[SMW-0903] 40X-1000X Dual Viewing Biological Microscope
₩604,700
설명
Lab/Industrial Microscope

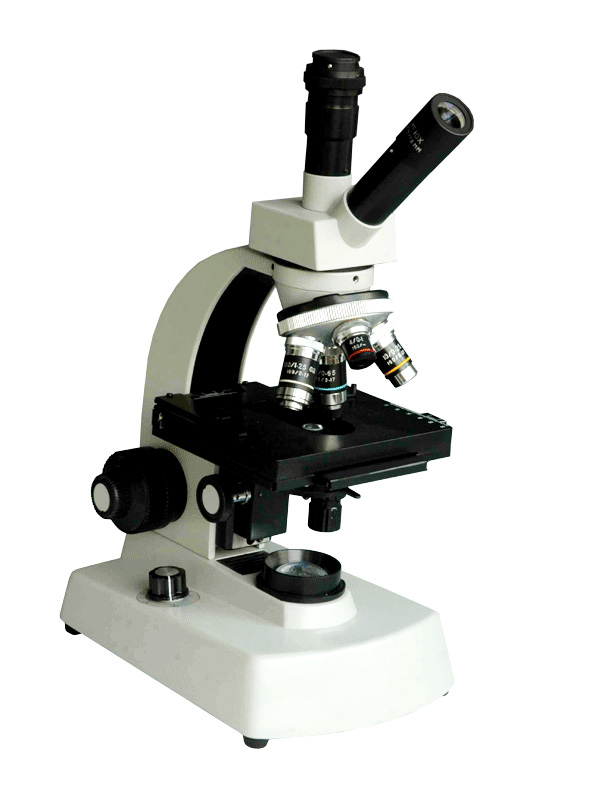

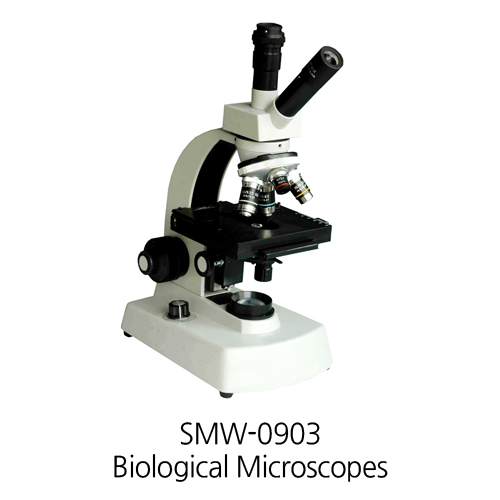

40X-1000X Dual Viewing Biological Microscope
SMW-0903
The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.
| Model | SMW-0903 | |
| Total Magnification | 40X-1000X | |
| Viewing Body | Square 45 degree Incline Monocular Body | – |
| Square 45 degree Incline Dual Viewing Body | S | |
| 30 degree Incline Binocular Body Interpupillary Adjustable | – | |
| 30 degree Incline Trinocular Body Interpupillary Adjustable Distance: 55mm-75mm | – | |
| Eyepiece | WF10X (Viewing Field Diameter:ø18mm) | |
| Objectives | Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65, 100X(s,oil)/NA.1.25 |
|
| Mechanical Stage | Size:140mmX120mm, Moving Range:70mmX40mm, Vernier Division: 0.1mm |
|
| Nosepiece | Nosepiece of four holes revolving on ball | |
| Condenser | Abbe Condenser:N.A.1.25, Elevating Range: 15mm | |
| Focusing | Coaxial coarse/fine focusing adjustment. Focusing Range: 20mm. Division of Fine Focus Adjustment: 0.002mm |
|
| Illumination | 6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V. Filter (blue) | |
Note: “-” is unavailable, “S” is standard, “O” is optioanl.
1) Adjustable parfocal objective is the patent product of manufacturer. It can improve the parfocal character of the instrument.
2) The mechanical stage of no gap surface-plate is the patent product of our factory. It can be cleaned easily.
