Lab/Industrial Microscope

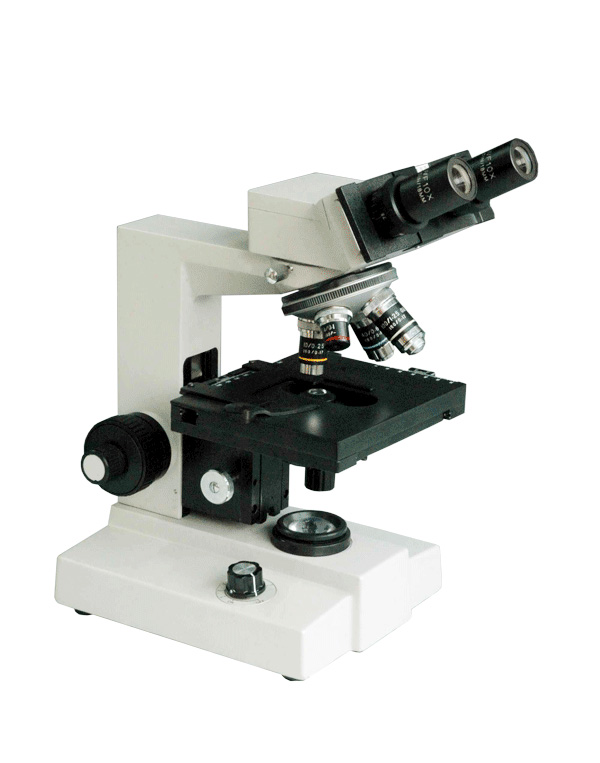

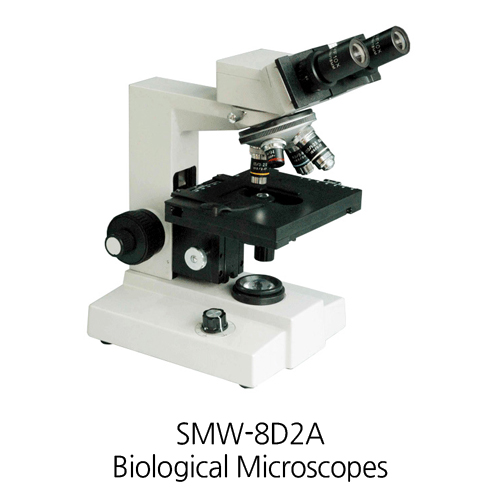

40X-1600X Binocular Biological Microscope
SMW-8D2A
The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.
Model | SMW-8D2A | |
Total Magnification | 40X-1600X | |
Viewing Body | 30 degree Incline Binocular Body, Interpupillary Adjustable Distance: 55mm-75mm | S |
30 degree Incline Trinocular Body, Interpupillary Adjustable Distance: 55mm-75mm | – | |
Eyepiece | WF10X(Viewing Field Diameter:ø18mm), WF16X(Viewing Field Diameter:ø11mm) | |
Adjustable Parfocal Achromatic Objectives | 4X/NA0.1, 10X/NA0.25, 40X(s)/NA0.65, 100X(s)/NA.1.25 | S |
4X/NA0.1, 10X/NA0.25, 40X(s)/NA0.65, 100X(with diaphragm)/NA0.9-1.25(s, oil) | – | |
Mechanical Stage | Size:160mmX130mm, Moving Range:76mmX50mm, Vernier Division: 0.1mm | |
Nosepiece | Nosepiece of four holes revolving on ball | |
Condenser | Abbe Condenser:N.A.1.25, Elevating Range:15mm | S |
Dark Field Condenser( Dry, Immersion ) | – | |
Focusing | Coaxial Coarse/Fine Focusing Adjustment, Focusing Range:20mm, Division of Fine Focus Adjustment:0.002mm | |
Illumination | 6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V, Filter(blue, yellow, ground glass) |
Note: “-” is unavailable, “S” is standard, “O” is optioanl.
