설명
Education Microscope
Student Microscopes

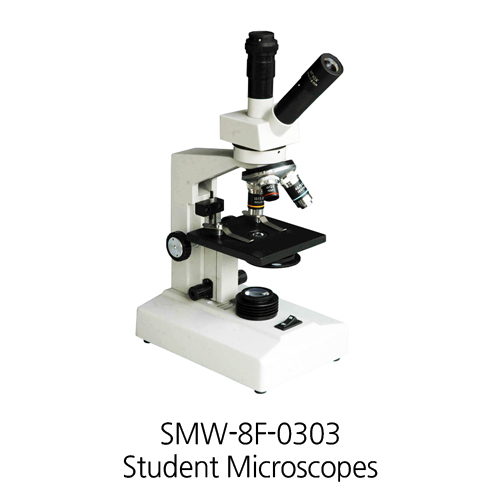

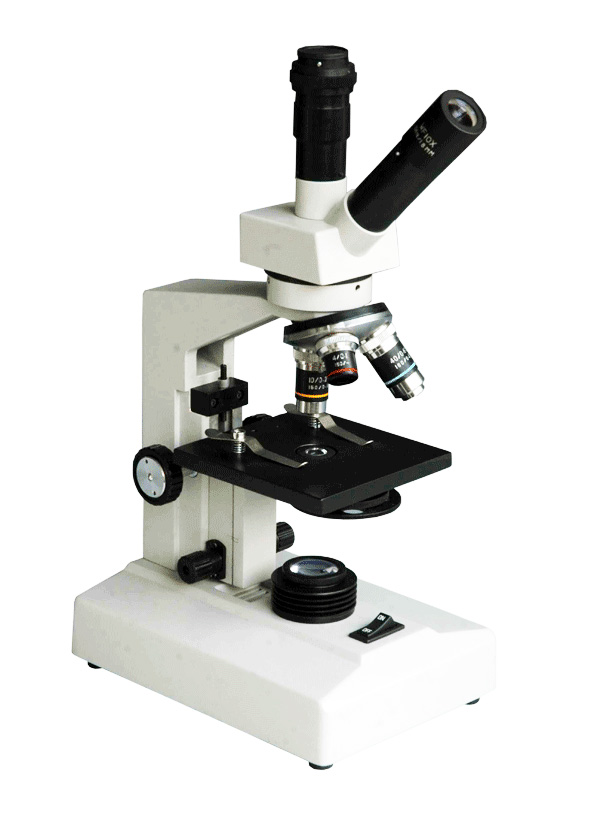

40X-400X Dual Viewing Biological Microscope
SMW-8F-0303
This type of microscope is also called a teaching microscope since it is often used by teachers and students for dual simultaneous viewing of specimens. The teacher can view the specimen and give instructions to the student who is examining the specimen at the same time.
| Model | SMW -8F- 0302 |
SMW -8F- 0303 |
|
|
Total Magnification
|
40X-400X |
||
|
Viewing Body
|
Square 45 degree Incline, 360 degree rotation Monocular Body |
S
|
–
|
| Square 45 degree Incline, 360 degree rotation Dual Viewing body |
–
|
S
|
|
|
Eyepiece
|
WF10X (Viewing Field Diameter: ø18mm) | ||
|
Objectives
|
Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65 | ||
|
Fixed Stage
|
Size: 110mmX115mm, Stage with clip | ||
|
Nosepiece
|
Three Holes Plane Nosepiece | ||
|
Condenser
|
N.A.0.65, With Five Holes Diaphragm | ||
|
Focusing
|
Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range:20mm(with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit) | ||
|
Illumination
|
Incandescent lamp 220V/20W or 110V/20W |
S
|
S
|
|
Fluorescent Lamp 220V/5W or 110V/5W |
O
|
O
|
|
|
6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V |
O
|
O
|
|
