Lab/Industrial Microscope

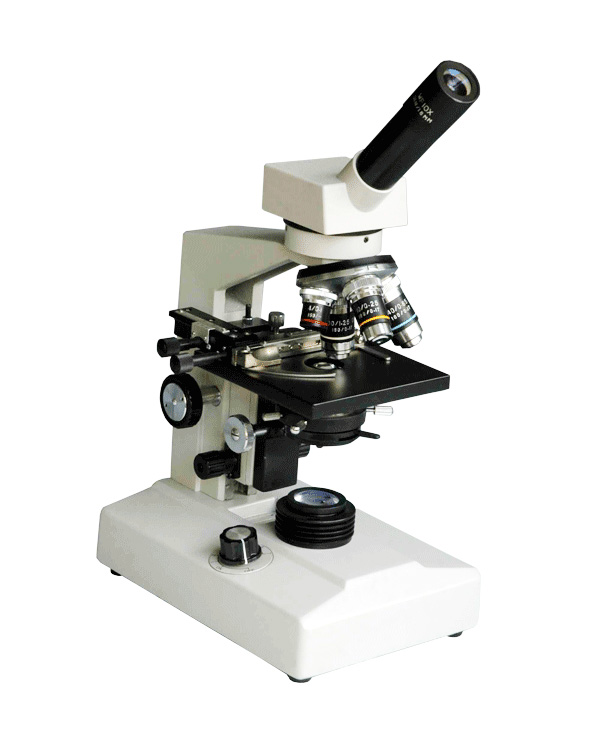

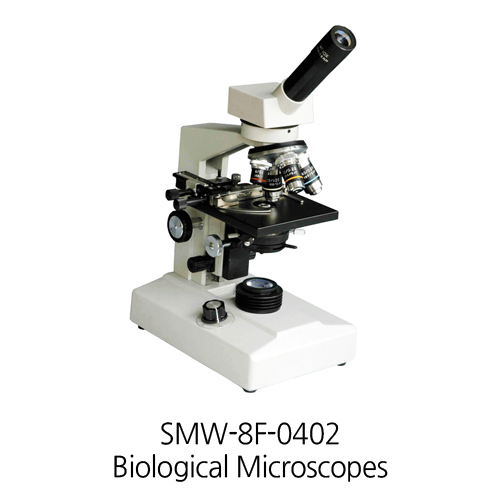

40X-1000X Monocular Biological Microscope
SMW-8F-0402
The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.
Model | SMW-8F-0402 | |
Total Magnification | 40X-1000X | |
Viewing Body | Square 45 degree Incline Monocular Body | S |
Square 45 degree Incline Dual Viewing body | – | |
30degree Incline Binocular Body,Interpupillary Adjustable Distance: 55mm-75mm | – | |
30degree Incline Trinocular Body (2/8 Light Spectrum), Interpupillary Adjustable Distance: 55mm-75mm | – | |
Eyepiece | WF10X (Viewing Field Diameter: ø18mm) | |
Objectives | Adjustable Parfocal Achromatic Objective 4X/NA 0.1,10X/NA 0.25,40X(s)/NA 0.65,100X(s,oil)/NA.1.25 | |
Fixed Stage | Size: 110mmX115mm,Moving Range: 60mmX30mm,Vernier Division: 0.1mm | |
Nosepiece | Four Holes Plane Nosepiece | |
Condenser | Abbe Condenser: N.A.1.25, Elevating Range: 15mm | |
Focusing | Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range: 20mm (with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit) | |
Illumination | Incandescent lamp 220V/20W or 110V/20W | S |
Fluorescent Lamp 220V/5W or 110V/5W | O | |
6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V | O |
Note: “-” is unavailable, “S” is standard, “O” is optioanl.
