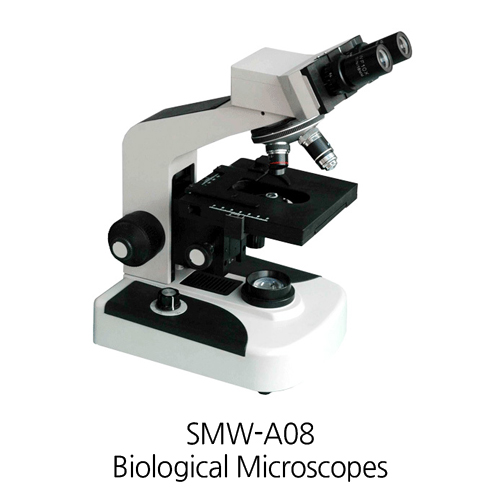

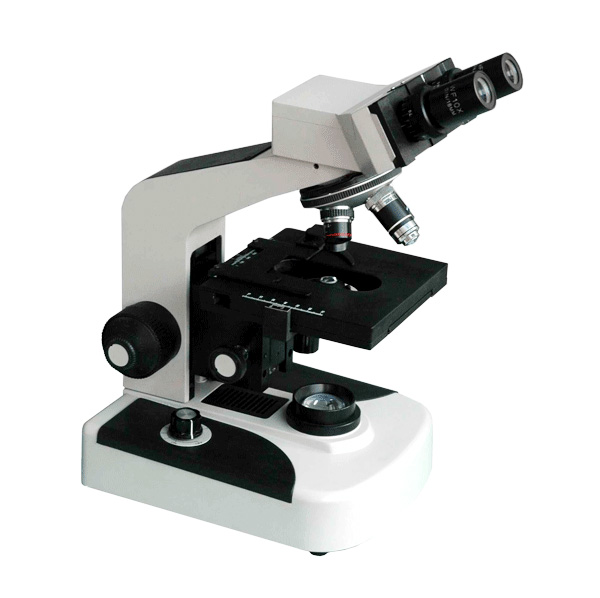

[SMW-A08] 40-1000X Binocular Biological Microscope
₩634,000
설명
Lab/Industrial Microscope
40-1000X Binocular Biological Microscope
SMW-A08
The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.
|
Model
|
SMW-A08
|
SMW-A09
|
|
|
Total Magnification
|
40X-1000X |
||
|
Viewing Body
|
30 degree Incline Binocular Body, Interpupillary Adjustable Distance: 55mm–75mm |
S
|
–
|
| 30 degree Incline Trinocular Body, Interpupillary Adjustable Distance: 55mm–75mm |
–
|
S
|
|
|
Eyepiece
|
WF10X (Viewing Field Diameter:ø18mm) | ||
|
Objectives
|
Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65, 100X(s,oil)/NA.1.25 | ||
|
Mechanical Stage
|
Size: 140mm-140mm, Moving Range: 70mm-50mm, Vernier Division: 0.1mm | ||
|
Nosepiece
|
Nosepiece of four holes revolving on ball | ||
|
Condenser
|
Abbe Condenser: N.A. 1.25, Elevating Range:15mm | ||
|
Focusing
|
Coaxial coarse/fine focusing adjustment. Focusing Range: 20mm. Division of Fine Focus Adjustment: 0.002mm | ||
|
Illumination
|
6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V.Filter (blue, yellow, ground glass) | ||
Note: “-” is unavailable, “S” is standard, “O” is optioanl.
1) Adjustable parfocal objective is the patent product of manufacturer, it can improve the parfocal character of the instrument.
