설명
Lab/Industrial Microscope

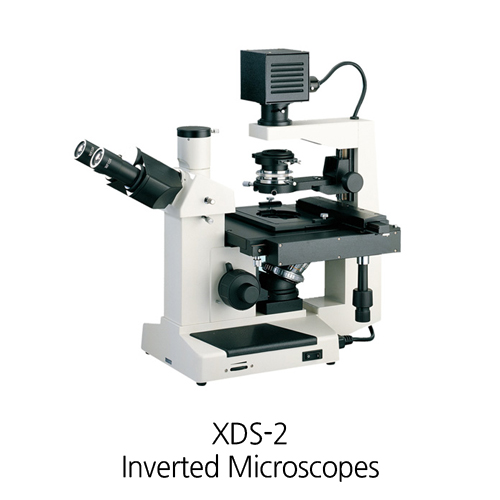

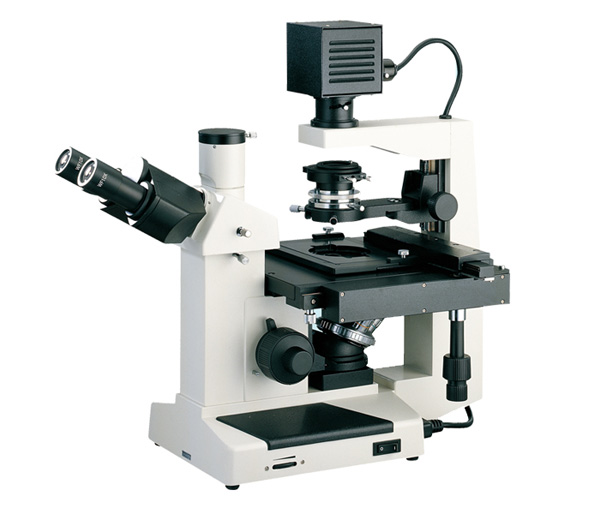

Inverted Trinocular Biological Microscope W/ 10X PHP
XDS-2
XDS-2 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities,medical treatment, agriculture and animal husbandry, etc.
Advantage
1) Equipped with wide field eyepiece, long working distance plan achromatic objectives

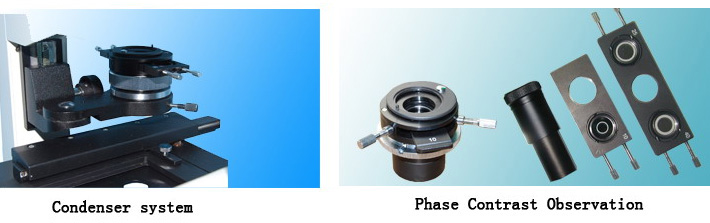

2) Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope
3) Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
4) 6V30W halogen lamp with brightness control
Specification
| Model | XDS-2 |
| Eyepiece | Wide field WF10X(Φ20mm) |
| Objective | Long working distance plan achromatic PL L 10X/0.25 |
| Long working distance plan achromatic PL L 25X/0.40 | |
| Long working distance plan achromatic PL L 40X/0.60 | |
| Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2 | |
| Eyepiece tube | Trinocular (Inclination of 30°, 100% image light for photography capable) |
| Focus system | Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple(Ball bearing inner locating) |
| Stage | Double layer mechanical(Size:224mmX208mm,moving range:112mmX79mm) |
| Shelf of specimen | Match to install |μ68mm or 77mmX29mm culture utensil |
| Match to install 82mmX57mm culture utensil | |
| Match to install 128mmX85mm 96 holes culture utensil | |
| Filter | Blue filter |
| Green filter | |
| Frosted filter | |
| Sliding phase contrast unit | Centering telescope |
| 10X Sliding phase plate | |
| Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm | |
| Light source | 6V 30W Halogen lamp with brightness control. |
Optional accessories
| Name | Sort/Technique parameter | NO. | |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 | |
| Dividing 10X(|μ20mm), 0.1mm/Div | 1120010 | ||
| Nosepiece | Quintuple(Ball bearing inner locating) | 032001 | |
| Condenser | Ultra long working distance,W.D.:70mm | 050006 | |
| Filter | Yellow filter | 115003 | |
| Sliding phase contrast unit | Objectives | Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2 | 2430325 |
| Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2 | 2430340 | ||
| Sliding phase plate | 25X/40X | 112005 | |
| CCD adapter | 0.4X | 812001 | |
| 0.5X | 812004 | ||
| 1X | 812002 | ||
| 0.5X with dividing 0.1mm/Div | 812003 | ||
| Camera | DV-1(With USB & video output) | 800001 | |
| DV-2(With USB output) | 800003 | ||
| DV-3(With video output) | 800005 | ||
| Digital camera adapter | CANON digital camera adapter(A610,A620,A630,A640) | 821001 | |
| Photograph unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 | |
| 4X Focusing photograph attachment | 840002 | ||
| MD Adapter | 840003 | ||
| PK Adapter | 840004 | ||
