설명
Lab/Industrial Microscope

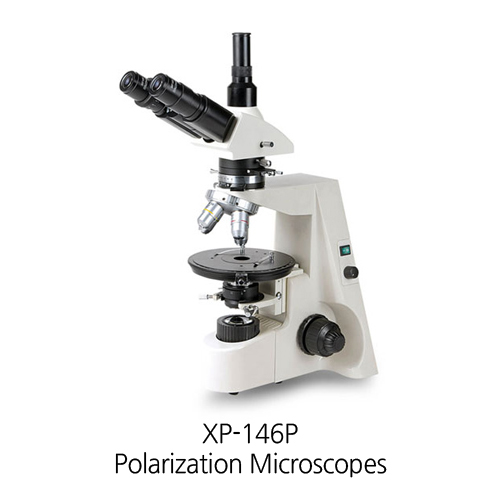

Transmission Polarization Microscope
XP-146P
Model No. XP-146P Transmission Polarizing microscope is one of the most professional instruments, in common use, for Geological, Mineral, Metallurgical departments and relative Academy. Recent years, with the development of optical technology, the Polarizing microscope is in widely use. Transmission Polarizing microscope is a very suitable product. The user can make single polarizing view, orthogonal polarizing view, cone light view and micro-photograph. The microscope is equipped with attachment, such as gypsum(1 λ),mica(1/4 λ ) test piece, quartz wedge and attachable mechanical stage. It is a novel microscope with maturity function and nicer quality.
|
Specification
|
Model
|
|
|
XP-146P
|
||
|
Viewing head
|
Compensation Free Trinocular Head. Inclined at 3 0 ° ( 50mm -75mm )
|
S
|
|
Eyepiece
|
WF10 × /18mm
|
|
|
10 × gridding eyepiece
|
S
|
|
|
10 × with reticule
|
S
|
|
|
WF10 × /22mm
|
S
|
|
|
Objective
|
Infinite plan-objective: 4X, 10X, 25X, 40X(S), 63X(S)
|
S
|
|
Stage
|
Round revolving stage
|
S
|
|
Stage dia: Φ 160mm
|
||
|
Rotatable: 360 °
|
||
|
Condenser
|
Swing type N.A1.25 Abbe condenser with iris
diaphragm & filter
|
S
|
|
Focusing
|
Coaxial coarse&fine focusing adjustment with
rack and pinion mechanism Fine focusing scale
Value 0.002mm
|
S
|
|
Collector
|
High brightness light collector
|
S
|
|
Light source
|
Halogen tungsten bulb 6V/30W.AC 85V-230V
|
S
|
|
Adjustable brightness
|
S
|
|
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x
1.3Mega、3.0Mega Pixels CMOS Digital camera eyepiece
|
|
Note: “s” is standard outfit; “O” is optional outit
