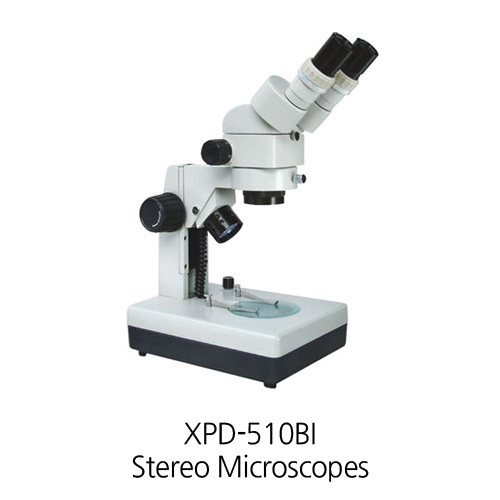

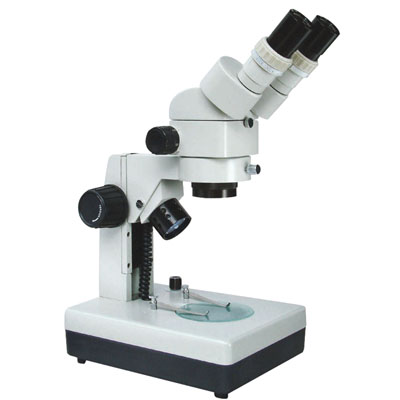

[XPD-510BI] Stereo Microscope
₩1,299,300
설명
Lab/Industrial Microscope
Stereo Microscope
XPD-510BI
Standard configurations
| Objective zoom range | 0.5, 1X, 1.75X,3X, 5.5X |
| Eyepice | SWF10X/23mm |
| Working distance | 95mm |
| Interpupillary distance adjustment range | 48mm-75mm |
| Binocular head | inclination of 45。 |
| Diopter adjustment | ±5 diopter |
| Optical Body Rotation。 | 360。 |
| Voltage input | 110V/60HZ or 220V/50HZ |
| Top halogen lamp | 6V15W adjustable brightness |
| Bottom fluorescent lamp | 5W |
Technical data
|
Project
|
Auxiliary Objective
|
Eyepiece
|
Working distance(mm)
|
|||||||
|
SXF10X
|
WFl5X
|
WF20X
|
WF25X
|
|||||||
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cationn
|
Visual field
|
|||
|
Data
|
0.5X
|
2.8X
5X 8.8X 15X 27.5X |
93.6
46 26.3 15.3 8.4 |
4.1X
7.5X 13.1X 22.5X 41.3X |
58.2
32 18.3 10.7 5.8 |
55X
10X 17.5X 30X 55X |
47.3
26 14.9 8.7 4.7 |
6.9X
12.5X 21.9X 37.5X 68.8X |
43.6
24 13.7 8 4.4 |
200
|
|
0.75X
|
4.1X
7.5X 13.1X 22.5X 41.3X |
55.8
30.7 17.5 10.2 5.6 |
6.2X
11.3X 19.7X 33.8X 61.9X |
38.9
21.3 12.2 7.1 3.9 |
8.3X
15X 26.3X 45X 82.5X |
31.5
17.3 9.9 5.8 3.2 |
10.3X
18.8X 32.8X 56.3X 103.1X |
29.1
16 9.1 5.3 2.9 |
125
|
|
|
1X
|
5.5X
10X 17.5X 30X 55X |
41.8
23 13.1 7.7 4.2 |
8.3X
15X 26.3X 45X 82.5X |
29.1
16 9.1 5.3 2.9 |
11X
20X 35X 60X 110X |
23.6
13 7.4 4.3 2.4 |
13.8X
25X 43.8X 75X 137.5X |
21.8
12 6.9 4 2.2 |
95
|
|
|
1.5X
|
8.3X
15X 26.3X 45X 82.5X |
27.9
15.3 8.8 5.1 2.9 |
12.4X
22.5X 39.4X 67.5X 123.8X |
19.4
10.7 6.1 3.6 1.9 |
16.5X
30X 52.5X 90X 165X |
15.8
8.7 5 2.9 1.8 |
20.6X
37.5X 65.6X 112.5X 206.3X |
14.5
8 4.6 2.7 1.5 |
55
|
|
|
2X
|
11X
20X 35X 60X 110X |
20.9
11.5 6.6 3.8 2.1 |
16.5X
30X 52.5X 90X 165X |
14.5
8 4.6 2.7 1.5 |
22X
40X 70X 120X 220X |
11.8
6.5 3.7 2.2 1.2 |
27.5X
50X 87.5X 150X 275X |
10.9
6 3.4 2 1.1 |
35
|
|
