Lab/Industrial Microscope

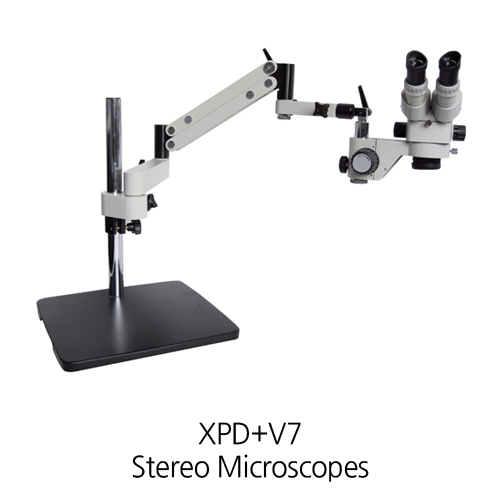

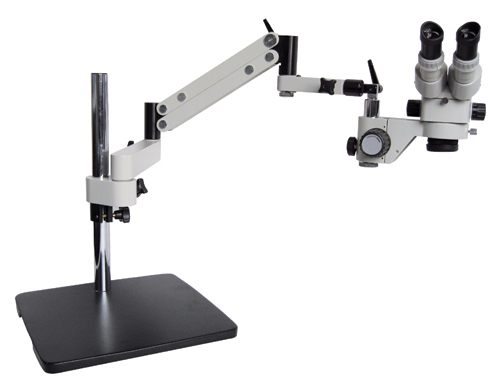

Change Steps Stereo Microscopes W/ Boom Stand
XPD+V7
Item # XPD+V7 Change Steps Stereo Microscopes W/ Boom Stand
It employs the optical body as well as the imaging adapters of the XPZ system. It features the latest design in parallel optics and a common objective lens, improving the depth of field, optical clarity, contrast, and dimensional quality of the specimen under examination. Its long working distance, excellent contrast, and super wide field of view characterize this instrument as superior to its competitors. It also features a 48mm to 75mm interpupillary adjustment; the largest range available in the industry. Mechanically the XPD-510 also excels, with a large comfortable base, precise and resilient ball bearing mechanical focusing, and superior ergonomics. These microscopes are used extensively world wide in medical research and health care, biology and botany research, agriculture, as well as electronic component manufacturing. They are also particularly well suited in the inspection and production of LC Polymer films and glass substrates, LCD printing pastes, LED production, fabric and fiber evaluation, electronics assembly, printed circuit board manufacturing, medical device inspection and all types of quality control environments.
Standard configurations
| Objective zoom range | 0.5, 1X, 1.75X,3X, 5.5X |
| Eyepice | SWF10X/23mm |
| Working distance | 95mm |
| Interpupillary distance adjustment range | 48mm-75mm |
| Binocular head | inclination of 45 |
| Diopter adjustment | ±5 diopter |
| Optical Body Rotation | 360 |
Technical data
|
Project
|
Auxiliary Objective
|
Eyepiece
|
Working distance(mm)
|
|||||||
|
SXF10X
|
WFl5X
|
WF20X
|
WF25X
|
|||||||
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cationn
|
Visual field
|
|||
|
Data
|
0.5X
|
2.8X
5X 8.8X 15X 27.5X |
93.6
46 26.3 15.3 8.4 |
4.1X
7.5X 13.1X 22.5X 41.3X |
58.2
32 18.3 10.7 5.8 |
55X
10X 17.5X 30X 55X |
47.3
26 14.9 8.7 4.7 |
6.9X
12.5X 21.9X 37.5X 68.8X |
43.6
24 13.7 8 4.4 |
200
|
|
0.75X
|
4.1X
7.5X 13.1X 22.5X 41.3X |
55.8
30.7 17.5 10.2 5.6 |
6.2X
11.3X 19.7X 33.8X 61.9X |
38.9
21.3 12.2 7.1 3.9 |
8.3X
15X 26.3X 45X 82.5X |
31.5
17.3 9.9 5.8 3.2 |
10.3X
18.8X 32.8X 56.3X 103.1X |
29.1
16 9.1 5.3 2.9 |
125
|
|
|
1X
|
5.5X
10X 17.5X 30X 55X |
41.8
23 13.1 7.7 4.2 |
8.3X
15X 26.3X 45X 82.5X |
29.1
16 9.1 5.3 2.9 |
11X
20X 35X 60X 110X |
23.6
13 7.4 4.3 2.4 |
13.8X
25X 43.8X 75X 137.5X |
21.8
12 6.9 4 2.2 |
95
|
|
|
1.5X
|
8.3X
15X 26.3X 45X 82.5X |
27.9
15.3 8.8 5.1 2.9 |
12.4X
22.5X 39.4X 67.5X 123.8X |
19.4
10.7 6.1 3.6 1.9 |
16.5X
30X 52.5X 90X 165X |
15.8
8.7 5 2.9 1.8 |
20.6X
37.5X 65.6X 112.5X 206.3X |
14.5
8 4.6 2.7 1.5 |
55
|
|
|
2X
|
11X
20X 35X 60X 110X |
20.9
|
||||||||
