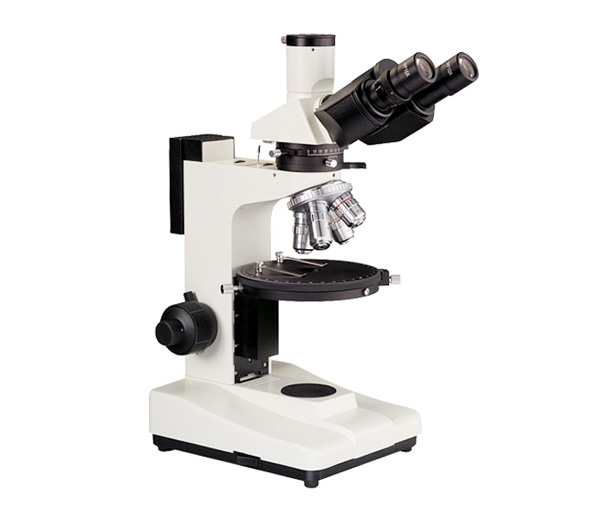

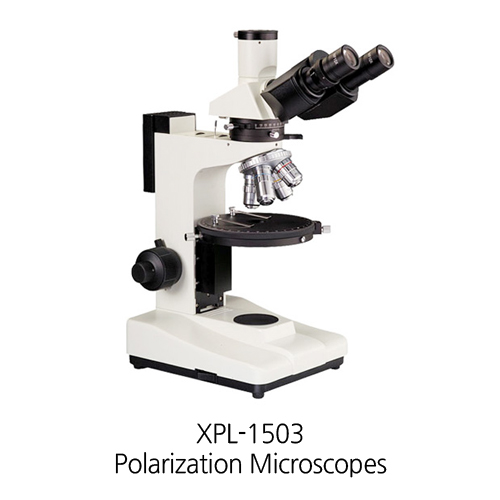

[XPL-1503] Reflected Illumination Polarization Microscope

₩2,685,300

Quantity:

설명

Lab/Industrial Microscope

Reflected Illumination Polarization Microscope

XPL-1503

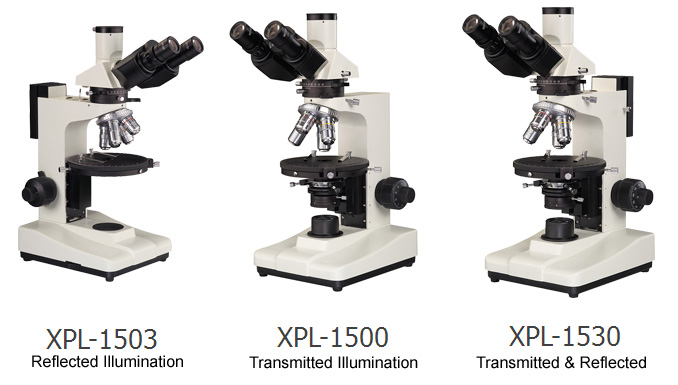

XPL-1500 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction Features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

Advantage

1) Transmitted, Reflected, transmitted/reflected illumination can be choosn
2) Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
3) Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2µm
4) Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6′ center adjustable and with tightener￡?Stage vertical effective movement up to 30mm
5) Wide voltage range power supply (85-265V;47-60HZ), 6V, 20W halogen lamp, brightness adjustable

Specification

Model XPL-1503 (Reflected illumination)
Eyepiece Wide field WF10X (µ18mm)
Division eyepiece 10X (µ18mm) 0.10mm/div
Objective (center adjustable) Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective (no cover glass) PL L40X/0.60 (spring)
Strain-free plan achromatic objective (no cover glass) PL L 60X/0.75 (spring)
Reflected illumination Polarizer Rotatable
Illumination 6V 20w, halogen lamp, adjustable brightness
Transmitted illumination Polarizer 360°rotatable, have 0,90,180,270 four scale
Collector For halogen lamp illumination
Illumination 6V 20w, halogen lamp, adjustable brightness
Abbe condenser N.A. 1.25 Rack & pinion adjustable
Eyepieces tube Trinocular, Inclination of 30, can send 100% of the image light to top photography port
Intermediate attachment Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12′
Bertrand lens , impellent style , center adjustable
λ compensator
λ/4 compensator
Quarts wedge compensator
Nosepiece Quadruple (Frontward ball bearing inner locating)
Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2µm
Stage Rotatable stage, Diameter |µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6′ center adjustable and with tightener

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field WF16X(|µ11mm) 1051016
Objective
(center adjustable)		 Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40 2810320
Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring) 2810311
Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40 2850320
Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70 2850350
Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80 2850380
Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring) 2850311
Nosepiece Quadruple (Frontward ball bearing inner locating)?êadjust the center of objective 031007
Slide moving holder Moving range: 30mmX25mm 116202
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1 With USB & video output 800001
DV-2 With USB output 800003
DV-3 With video output 800005
Photo unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
Digital camera adapter CANON (A610,A620,A630,A640) 820001
