설명
Lab/Industrial Microscope

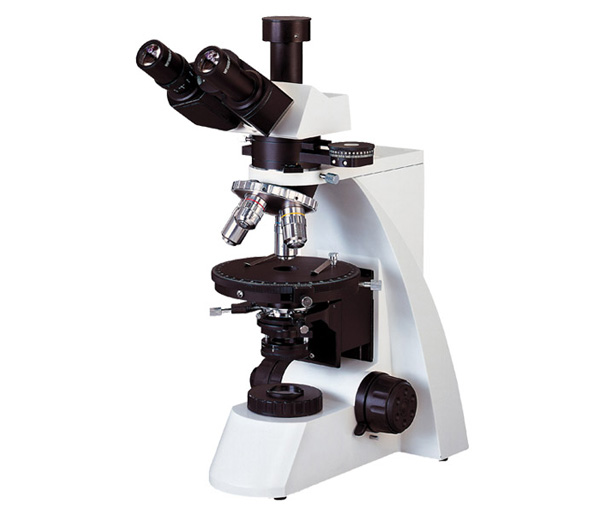

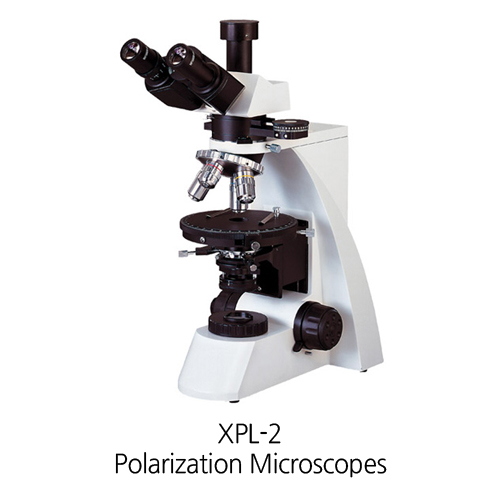

Trinocular Polarization Microscope
XPL-2
XPL-1 series polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing view, orthogonal polarizing view, cone light view. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
Advantage
1) Equipped with strain-free plan achromatic objectives or infinity strain-free plan achromatic objectives and wide field eyepiece
2) Nosepiece can adjust the center of objective
3) Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2µm
4) Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
5) Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
6) Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6′ when using vernier scale, center adjustable and with tightener

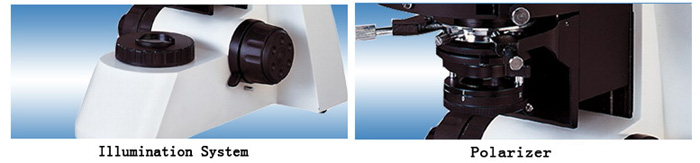

7) Illumination with 6V,20W halogen lamp, adjustable brightness
Specification
|
Model
|
XPL-1(Cover glass thickness: 0.17)
|
XPL-2(No Cover glass)
|
|
|
Eyepiece
|
Wide field WF10X(field number:Φ18mm)
|
||
|
Dividing eyepiece 10X(field number:Φ18mm)0.10mm/Div
|
|||
|
Strain-free plan achromatic objective
|
PL 4X/0.10 POL W.D: 17.94mm
|
PL L4X/0.12 POL W.D: 17.9 mm
|
|
|
PL 10X/0.25 POL W.D: 8.8 mm
|
PL L10X/0.25 POLW.D: 8.8 mm
|
||
|
PL 40X/0.65 POL(spring) W.D: 0.56 mm
|
PL L40X/0.60 POL(spring)
W.D: 3.73 mm
|
||
|
PL 100X/1.25 POL(spring,oil) W.D: 0.36 mm
|
PL L60X/0.70 POL(spring) W.D: 1.34 mm
|
||
|
Transmitted illuminating system
|
6V20W halogen lamp, brightness adjustable 6V20W
|
||
|
Rtatable 360°have 0,90,180,270 scale
|
|||
|
Abbe condenser N.A.1.25 with iris diaphragm
|
|||
|
Stage
|
Rotatable stage,diameter Ø150mm,360°graduated(in 1°increments),minimum vernier division:6′,center adjustable and with tightener.
|
||
|
Nosepiece
|
Quadruple (the center of objective is adjustable)
|
||
|
Intermediate attachment
|
Integrated analyzer,can be switched to normal or polarizing observe freely, enable 0~90° rotated and minimum vernier division:12′
|
||
|
Pller bertrand lens and center adjustable
|
|||
|
λ，λ/4 and quarts wedge compensator
|
|||
|
Eyepiece tube
|
Trinocular inclined 30°and enable to shoot in 100% light flux
|
||
|
Focus system
|
Coaxial coarse/fine focus with tension adjustable and up stop device,minimum division of fine focusing:2μm
|
||
|
Optioal Accessory
|
Objective
|
Cover thickness:0.17
20X、60X
|
No cover glass
20X、50X、80X、100X(Dry)
|
|
Slide movingholder
|
Moving range: 30mm×25mm
|
||
|
CCD adapter
|
0.5X, 1X, 0.5X with dividing
|
||
|
Camera
|
USB output: 1.3M/3.0M/5.0M/10.0 M pixel
VIDEO output: 380/520 TV line
|
||
|
Digital camera adapter
|
CANON(EF); NIKON(F)
|
||
|
Infinity optical system(Model: XPL-1A/XPL-2A)
|
|||
