Lab/Industrial Microscope

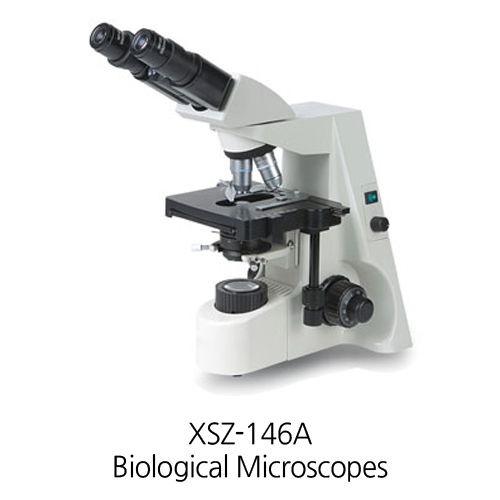

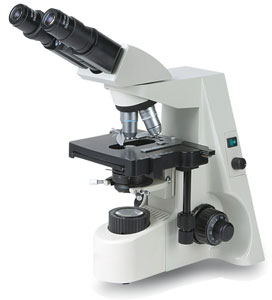

Binocular Biological Microscope
XSZ-146A
High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. Because of higher capability with lower price and humanized configuration design, It also becomes the first choice of individual, Schools, and Scientific research organization.
Features:
1) Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
2) Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
3) Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
4) High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
5) Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.
Specification:
|
Model
|
|||||
|
XSZ-146
|
XSZ-146T
|
XSZ-146A
|
XSZ-146AT
|
||
|
Viewing head
|
Compensation Free Binocular Head. Inclined at
30 °
|
S
|
S
|
||
|
Compensation Free Trinocular Head. Inclined at
30 °
|
S
|
S
|
|||
|
Interpupillary Distance
|
55mm-75mm
|
S
|
S
|
S
|
S
|
|
Eyepiece
|
WF10 ×/ 18mm
|
S
|
S
|
||
|
WF10 ×/ 22mm
|
S
|
S
|
|||
|
Objective
|
Achromatic objective: 4 × ,10 × ,40 ×(S),100 ×
(S)Oil
|
S
|
S
|
||
|
Infinity objective: 4 × 10 × 40 × (S) 100 × (S)Oil
|
S
|
S
|
|||
|
Stage
|
Double layers mechanical stage
|
S
|
S
|
S
|
S
|
|
Stage size: 180mm × 150mm
|
|||||
|
Moving range: 75mm × 50mm
|
|||||
|
Condenser
|
N.A1.25 Abbe condenser with iris
diaphragm & filter
|
S
|
S
|
S
|
S
|
|
Swing type N.A1.25 Abbe condenser with iris
diaphragm & filter
|
–
|
–
|
–
|
–
|
|
|
Focusing
|
Coaxial coarse & fine focusing adjustment with
rack and pinion mechanism Fine focusing
scale Value 0.002mm
|
S
|
S
|
S
|
S
|
|
Collector
|
High brightness Kohler illumination
|
S
|
S
|
S
|
S
|
|
Light source
|
Halogen tungsten bulb 12V/20W.AC 85V-230V
|
S
|
S
|
S
|
S
|
|
Adjustable brightness
|
|||||
|
Optional Accessory
|
Eyepiece：WF16×、WF20×、P16× and 1.3 or 3.0 Mega pixels CMOS electronic eyepieces
Plan-Objective：2×、4×、10×、20×、40×(s)、60×(s)、100×(s)
Infinity-plan Objective:2×、4×、10×、20×、40×(s)、60×(s)、100×(s)
Phase Contrast Attachment
Simple Polarization Set
Photo and CCD attchment
|
||||
| Note: “S” is Standard configuration, “-” is Optional accessories |
