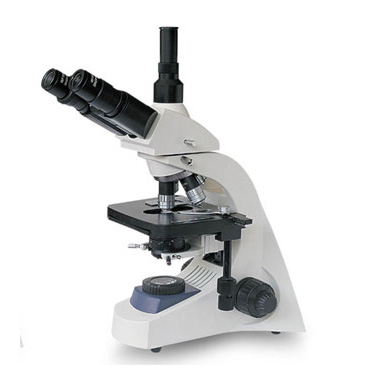

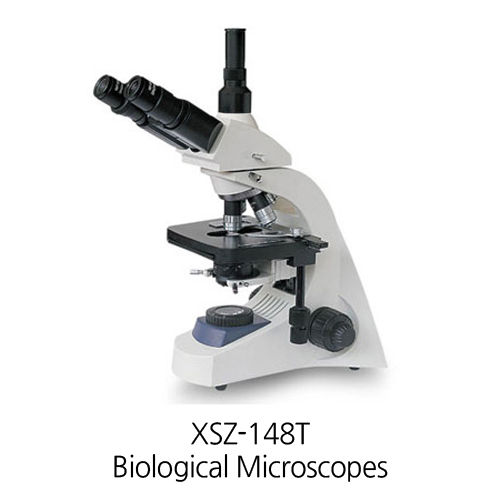

[XSZ-148T] Binocular Biological Microscope

900,400

Quantity:

설명

Lab/Industrial Microscope

Binocular Biological Microscope

XSZ-148T



High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. Because of higher capability with lower price and humanized configuration design, It also becomes the first choice of individual, Schools, and Scientific research organization.

Product Features:

1) Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
2) Backward nosepiece with superior objectives makes the best viewingeffect and more space for the operator.
3) Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
4) High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
5) Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.

Specification

Model
XSZ-148
XSZ-148T
Viewing head
Compensation Free Binocular Head. Inclined at 3 0 °
( 55mm -75mm )
S
Compensation Free Trinocular Head. Inclined at 3 0 °
( 55mm -75mm )
S
Eyepiece
WF10 ×
S
S
Objective
Achromatic objective: 4×,10×,40× (S),100× (S)Oil
S
S
Stage
Double layers mechanical stage
S
S
Stage size: 180mm × 150mm
Moving range: 75mm × 50mm
Condenser
N.A1.25 Abbe condenser with iris diaphragm & filter
S
S
Focusing
Coaxial coarse & fine focusing adjustment with rack and
pinion mechanism Fine focusing scale Value 0.002mm
S
S
Collector
High brightness Kohler illumination
S
S
Light source
Halogen tungsten bulb 12V/20W.AC 85V-230V
S
S
Adjustable brightness
Optional Accessory
Eyepiece: WF16×; WF20×; P16× and 1.3 Mega pixels CMOS electronic eyepiece
Plan objective: 4×; 10×; 20×(S); 40×(s); 60×(s); 100×(s)
Semi-plan Objective:4×; 10×; 20×(S); 40×(s); 60×(s); 100×(s)
Infinity Objective:4×; 10×; 20×; 40×(s); 60×(s); 100×(s)oil
Phase Contrast Attachment
Photo and CCD attchment

Note: “S” is Standard configuration, “-” is Optional accessories
