설명
Lab/Industrial Microscope

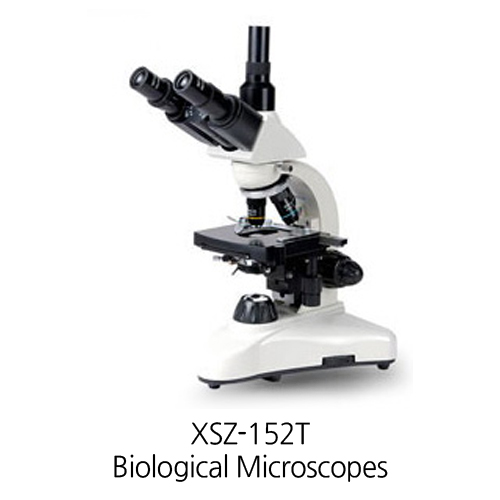

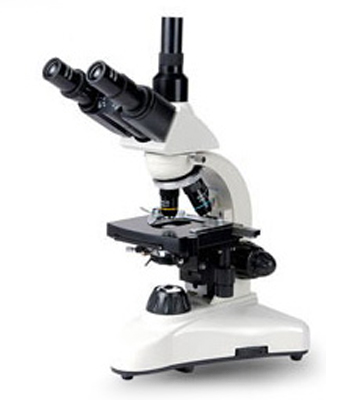

Trinocular Biological Microscope
XSZ-152T
The series microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.
|
Specification
|
Model
|
|||
|
XSZ-152A
|
XSZ-152B
|
XSZ-152T
|
||
|
Viewing head
|
Monocular Head.Inclined at 45°
|
S
|
||
|
Compensation Free Binocular Head .Inclined at 30°
|
S
|
|||
|
Compensation Free Trinocular Head Inclined at 30°
|
S
|
|||
|
Interpupillary Distance
|
55mm -75mm
|
S
|
S
|
|
|
Eyepiece
|
WF10 ×
|
S
|
S
|
S
|
|
Objective
|
Achromatic objectives:4X,10X,40X(S),100X(S) Oil
|
S
|
S
|
S
|
|
Stage
|
Double layers mechanical stage
|
S
|
S
|
S
|
|
Stage size:125mmX 130mm
|
S
|
S
|
S
|
|
|
Moving range: 75mm × 50mm
|
S
|
S
|
S
|
|
|
Condenser
|
Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter
|
S
|
S
|
S
|
|
Focusing
|
Coaxial coarse&fine focusing adjustment with rack and pinion
mechanism Fine focusing scale Value 0.002mm
|
S
|
S
|
S
|
|
Collector
|
High brightness light collector
|
S
|
S
|
S
|
|
Light source
|
Halogen bulb 6V/20W. AC85-230V
|
S
|
S
|
S
|
|
Adjustable brightness
|
||||
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x
Plan-Objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Semi-plan objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Photo and CCD attachment
|
|||
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
