설명
Lab/Industrial Microscope
Stereo Microscope

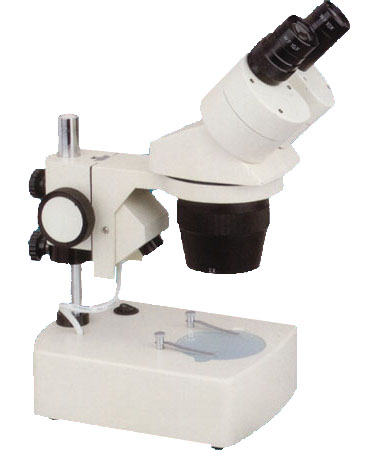

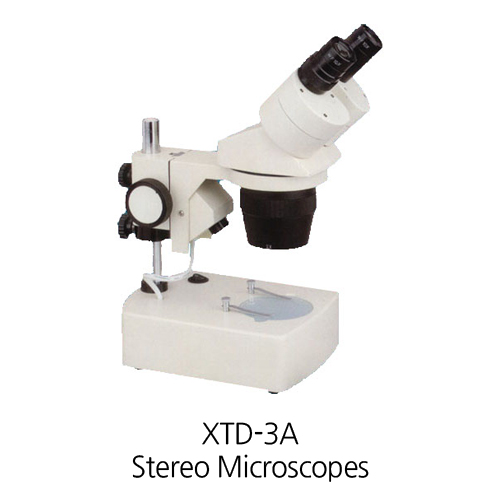

XTD-3A
XTD series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Advantage
1) Eyepiece field is wide and clear.
2) XTD-1、XTD-2、XTD-3 series equipped with two pairs of objectives, XTD-201 series equipped with a pair of objectives
3) Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted

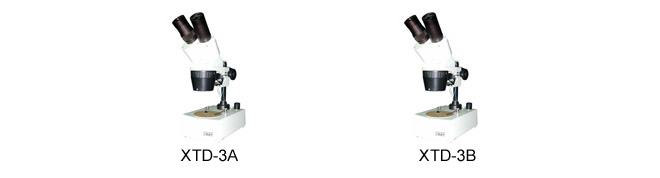

XTD-3 Series Specification
| Model | XTD-3A | XTD-3B |
| Eyepiece | WF10X(Φ20mm) | |
| Objective | 1X,2X | 2X,4X |
| Total magnification | 10X,20X | 20X,40X |
| Visual field | Φ20, Φ10 | Φ10, Φ5 |
| Work distance | 50mm | |
| Vertical effective movement | 50mm | |
| Base size | 190X120X55mm | |
| Illumination model | Reflected light source:6V, 8W halogen lamp | |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Divisional wide field eyepiece 10X(Φ20mm 0.1mm/Div | 1111010 |
