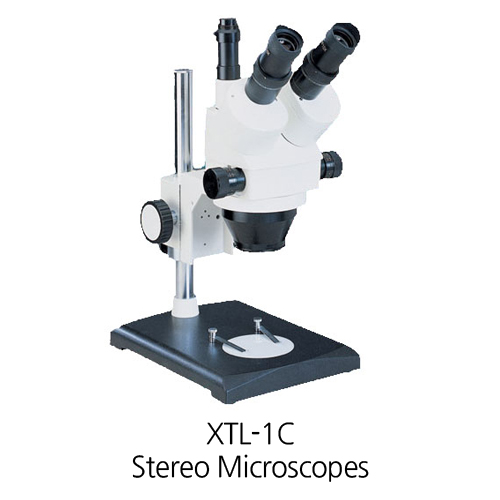

[XTL-1C] Stereo Microscope
₩708,000
설명
Lab/Industrial Microscope
Stereo Microscope
XTL-1C
XTL series stereo zoom microscopes are a kind of positive image microscope, they are adopted horizontal knob to zoom control, they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Advantage
1) Eyepieces field is wide and clear.
2) Objectives range of zoom magnification 0.7X to 4.5X
3) Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and eyepieces diopter can be adjusted, interpupillary distance adjustable range from 55mm to 75mm.

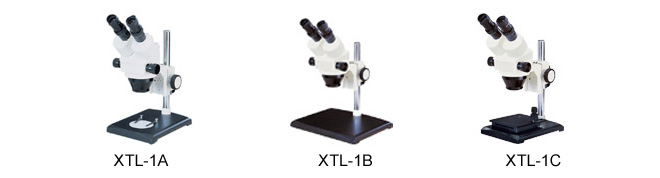

XTL-1 Series Specification
| Model | XTL-1A | XTL-1B | XTL-1C | |
| Eyepieces | WF10X (Φ20mm) | |||
| Objective | Objectives range of zoom magnification 0.7X to 4.5X | |||
| Total magnification | 7X to 45X | |||
| Visual field | Φ28.5 to Φ4.5 | |||
| Working distance | 88mm | |||
| Vertical effective movement | 25mm<=h<265mm | 25mm<=h<240mm | ||
| Base size | 240X180X25mm | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | |

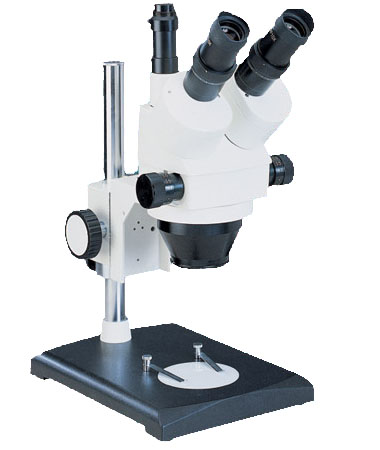

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field eyepiece WF10X(Φ22mm) | 1062010 |
| Wide field eyepiece WF15X(Φ15mm) | 1061015 | |
| Wide field eyepiece WF20X(Φ12mm) | 1060020 | |
| Wide field eyepiece WF25X(Φ9mm) | 1060025 | |
| Divisional wide field eyepiece 10X(Φ20mm) 0.1mm/Div | 1111010 | |
| Divisional wide field eyepiece 10X(Φ22mm) 0.1mm/Div | 1112010 | |
| Optical body | Trinocular body | 602003 |
| Trinocular body | 602004 | |
| Additional objective | 0.5X W.D.137mm | 621002 |
| 0.75X W.D.103mm | 622002 | |
| 1X W.D.88mm | 623001 | |
| 1.5X W.D.48mm | 624002 | |
| 2X W.D.29mm | 625002 | |
| Illumination | 8W/90～265V Annular LED illumination W.D.:35~200mm | 630002 |
| 5W,110V /220V Annular fluorescent illumination | 630003 | |
| CCD adapter | 0.5X | 813004 |
| 1X | 813005 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 |
