Medical Microscope

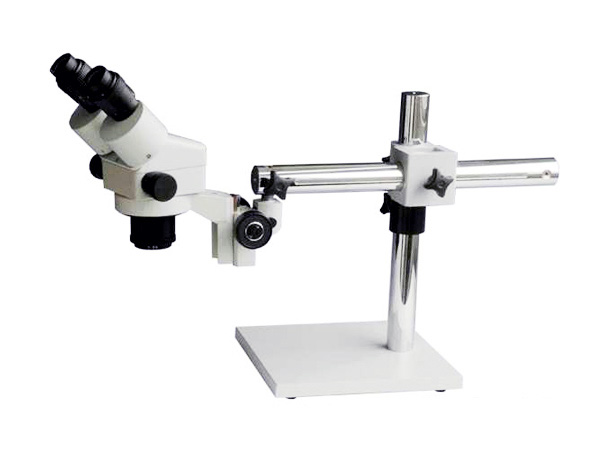

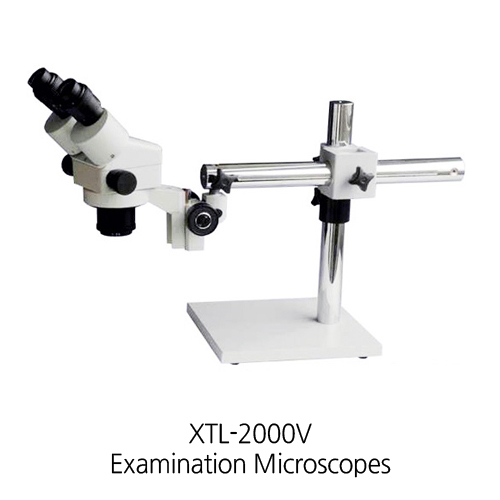

7X-45x Dental Lab Microscope W/ Boom Stand
XTL-2000V
The microscope’s zoom ratio:1:6.5 , objective zoom range: 0.7X – 4.5X , optional all kind of eyepieces、auxiliary objectives. It is suitable to observe and research in the field of teaching biological anatomy、electronic engineering、geology & mine、farming and forestry of plant protection、penal reconnaissance、jewelry appraisal and so on.
Features
– Optics System：Inner inclination optical viewing system, stereo viewing angle 13º、inclination at 45º viewing
– Zoom Ratio：1:6.5(0.7X～4.5X)
– Eyepiece：WF10X(ø20mm)
– Objective：0.7X～4.5X
– Working Distance：95mm
– Viewing Field range：ø33mm～ø5.1mm
– Interpupillary Adjustable Rang：55mm～75mm
– Round Working Stage Diameter：Ø95mm(Filter Diameter:ø40mm)
Specification
| Total Magnification | 7x-45x | |
| Head | Binocular | Trinocular |
| Eyepiece | High eye point and wide field eyepiece WF10X(ø20mm) | |
| Zoom range | 0.7x-4.5x, working distance 95mm. | |
| Main Body | The measurement to match between support and main body: 76mm | |
| Single Arm Boom Stand | –Base of Boomstand : 255X255X18mm –Vertical arm high:355mm(diameter:Φ38mm) –Horizontal arm length: 425MM (diameter:Φ38mm) –The measurement to match between the steeve and the aperture:Φ25mm |
|
Optical performance
| Zoom Rang ofobjective |
0.65-4.5X
|
|||
| Auxilliary objective lens |
0.5X
|
1X
|
2X
|
|
| Working Distance(mm) |
150
|
95
|
26
|
|
| WF10X/Φ20 | Total magnification | 3.3-22.5X | 6.5x-45X | 13-90X |
| Field view (mm) | 61.4-8.8 | 30.7-4.4 | 15.4-2.2 | |
| WF20X/Φ12 | Total magnification | 6.5-45X | 13-90X | 26-180X |
| Field view (mm) | 40-5.8 | 13-90X | 10-1.4 | |
Optional Accessory
| Eyepiece | WF15x/17mm |
| WF20x/14mm | |
| WF30x/9mm | |
| WF10x with micrometer 0.1mm | |
| Auxiliary Objectives | 0.5x, W.D.195mm |
| 0.7x, W.D.145mm | |
| 1.5x, W.D.58mm | |
| 2.0x, W.D.35mm | |
| CCD Adapter | C0.5, CCD adapter 0.5x |
| C1.0, CCD adapter 1.0x | |
| DT01, digital camera adapter | |
| PT01, photo adapter | |
| CDM1.0, CCD adatper 1.0x with micrometer | |
| Light Source | Fluorescent Ring or LED Ring |
