[XTL-3300] Zoom Stereo Microscope
[ST60-24B1] Stereo Microscope for Cell Phone Repair/Inspecting IC's and Flex PCB
₩320,000
[SZ45-ST1] Zoom Stereo Microscope
₩781,900
₩745,000
설명
Lab/Industrial Microscope
Zoom Stereo Microscope

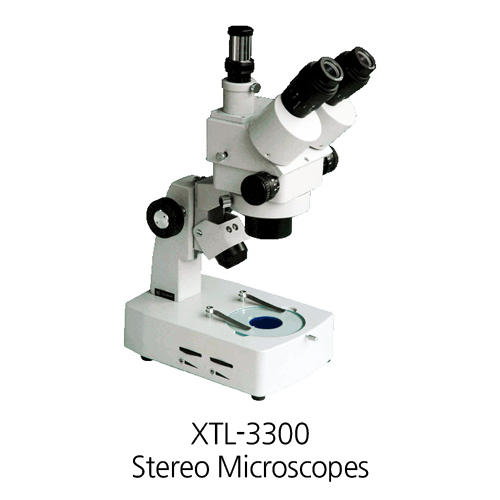

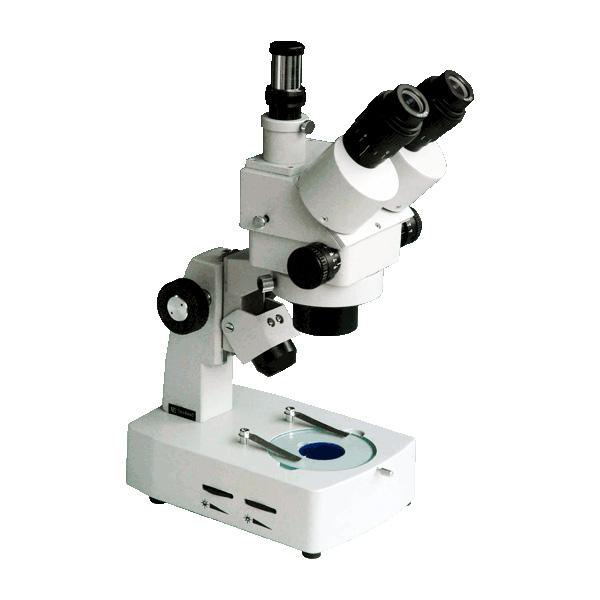

XTL-3300
XTL Series Zoom Stereo Microscope’s zoom ratio:1:6.5, objective zoom range: 0.7X – 4.5X, optional all kind of eyepieces, auxiliary objectives. It is suitable to observe and research in the field of teaching biological anatomy, electronic engineering, geology & mine, farming and forestry of plant protection, penal reconnaissance, jewelry appraisal and so on.

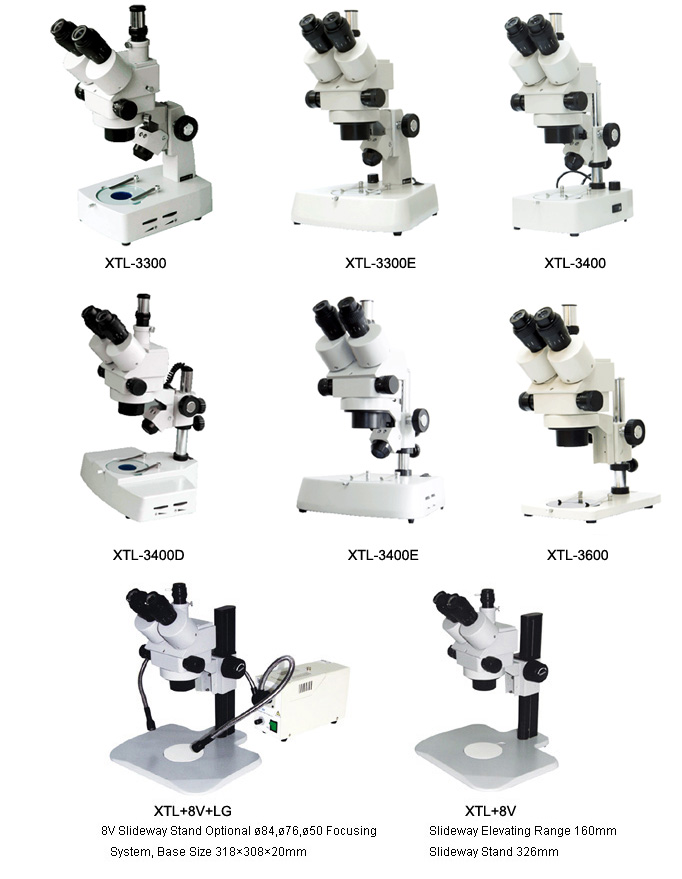

XTL-3000 Series Zoom Stereo Microscope
Specification
|
Optics System
|
Inner inclination optical viewing system, stereo viewing angle 13º; inclination at 45º viewing |
|
Zoom Ratio
|
1:6.5(0.7X – 4.5X) |
|
Eyepiece
|
WF10X(ø20mm) |
|
Objective
|
0.7X – 4.5X |
|
Working Distance
|
95mm |
|
Viewing Field range
|
5.1mm – 33mm |
|
Interpupillary Adjustable Rang
|
55mm – 75mm |
|
Round Working Stage Diameter
|
Ø95mm(Filter Diameter:ø40mm) |
|
Illumination
|
Free Voltage 100V～220V/12V10W halogen bulb with adjustable brightness |
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
