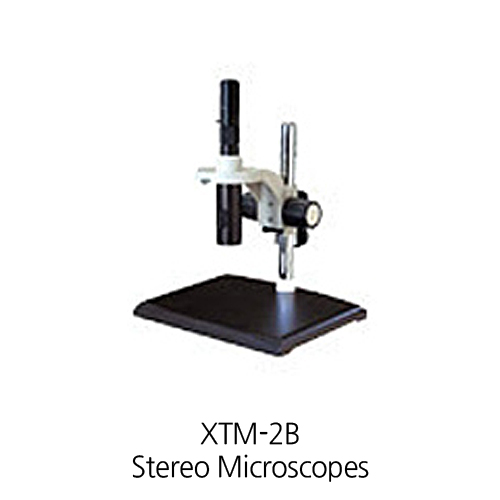

[XTM-2B] Monocular Zoom microscope
₩393,900
설명
Lab/Industrial Microscope
Monocular Zoom microscope
XTM-2B
XTM series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc. They can be used for inspection of electro-industry product line and printed circuit board.
Advantage
1) Standard C mount design, connecting the camera directly.
2) Digital & video camera, CCD camera and photography eyepiece can be chosen.
3) XTM-1 series are equipped with outside rotating optical body.
4) XTM-2 series are equipped with inside rotating optical body, annular LED illumination can be chosen.
5) Objective range of zoom magnification 0.7X to 4.5X.

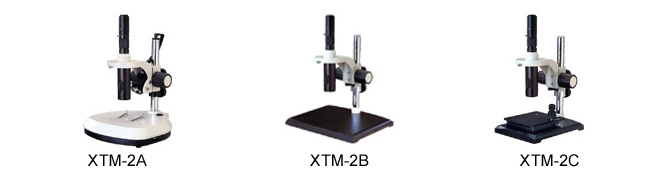

XTM-2 series Specification
| Model Specification | XTM-2A | XTM-2B | XTM-2C | ||
| CCD adapter | 1X | ||||
| Objective | Objectives range of zoom magnification: 0.7X to 4.5X | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 10mm<= h <215mm | 10mm<=h<265mm | 10mm<=h<240mm | ||
| Base size | 260X290X55mm | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | ||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness | No light source | |||
Optional accessorie
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Divisional wide field eyepiece 10X(φ18mm) 0.1mm/Div | 1021010 |
| Divisional wide field eyepiece 10X(φ20mm) 0.1mm/Div | 1111010 | |
| Eyepiece adapter | For divisional wide field eyepiece10X(φ20mm) | 830008 |
| Additional objective | 0.3X W.D.249mm | 620001 |
| 0.5X W.D.152mm | 621001 | |
| 0.75X W.D.113mm | 622001 | |
| 1.5X W.D.55.5mm | 624001 | |
| 2XW.D.40.7mm | 625001 | |
| Illumination | 8W/90 265V Annular LED illumination W.D.:35~200mm | 630001 |
| CCD adapter | 0.35X | 813001 |
| 0.5X | 813002 | |
| Camera | Photography eyepiece with USB out | 1096001 |
| Photography eyepiece with Video out | 1108001 | |
| DV-1 With USB & video output | 800001 | |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| CCD Camera | 800007 |
