Lab/Industrial Microscope

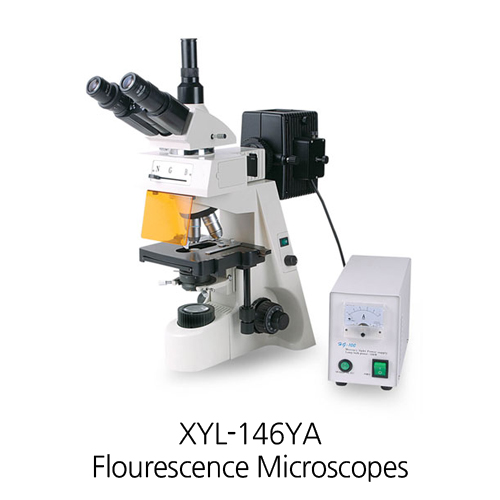

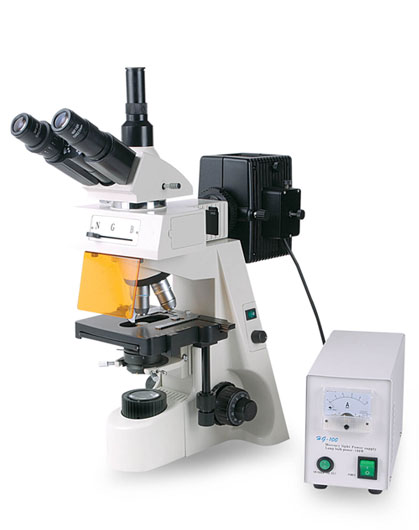

Fluorescent Microscope W/ Infinity Objective
XYL-146YA
Model XYL-146Y Epi-fluorescent microscope is widely used in Biology, latrology, Immunology, Genetics, Material science, etc. It is usually outfitted with 2 wave bands ,B&G, and you can also proceed general transmission view at the same time . U&V. wave band is available for option. High quality optical system and B&G. fluoroscope box bring you satisfactory fluorescent effect.
Specification
|
Model
|
||||
XYL-146Y
|
XYL-146YT
|
XYL-146YA
|
XYL-146YAT
|
||
Viewing head
|
Compensation Free Binocular
Head .Inclined at 30 °
|
S
|
|||
Compensation Free Trinocular
Head .Inclined at 30 °
|
S
|
||||
Sliding Binocular Head .Inclined at 45 °
|
S
|
||||
Sliding Trinocular Head .Inclined at45 °
|
S
|
||||
Eyepiece
|
WF10X/ 18mm
|
S
|
S
|
||
WF10X/ 22mm
|
S
|
S
|
|||
Objective
|
195fluorescent objective:4X,10X,40X(S),100X
(S) 0il
|
S
|
S
|
||
Infinity fluorescent objective: 4X,10X,40X(S),100X
(S) 0il
|
S
|
S
|
|||
20X,60X(S) objective
|
O
|
O
|
O
|
O
|
|
Stage
|
Double layers mechanical stage
|
S
|
S
|
S
|
S
|
Stage size:180mmX 150mm
|
|||||
Moving range :75mmX 50mm
|
|||||
Fluoroscope box
|
B 、G Wave band
|
S
|
S
|
S
|
S
|
U、V Wave band
|
O
|
O
|
O
|
O
|
|
Focusing |
Coaxial coarse & fine focusing adjustment with
rack and pinion mechanism Fine focusing scale
Value 0.002mm
|
S
|
S
|
S
|
S
|
Condenser
|
N. A.1.25 Abbe condenser with iris
diaphragm&filter
|
S
|
S
|
S
|
S
|
Optional Accessory
|
1.3 or 3.0 Mega pixels CMOS electronic eyepiece
|
||||
Photography attachment
|
