Medical Microscope

Colposcope – 5 Step Magnifications/Portable Easy To Move

YDJ II-1D

Colposcope: A lighted magnifying instrument used by a gynecologist to examine the tissues of the vagina and the cervix. The procedure is called colposcopy. The colposcope is used by doctors to perform a colposcopy examination. This examination examines the cervix and vagina, and is often used to detect cervical cancer and immunosupression such as HIV infections.

YDJ Series Colposcopes are precise optical instruments designed specially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. YDJ Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

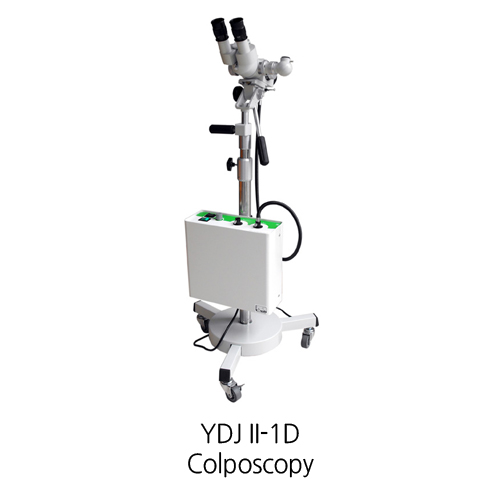

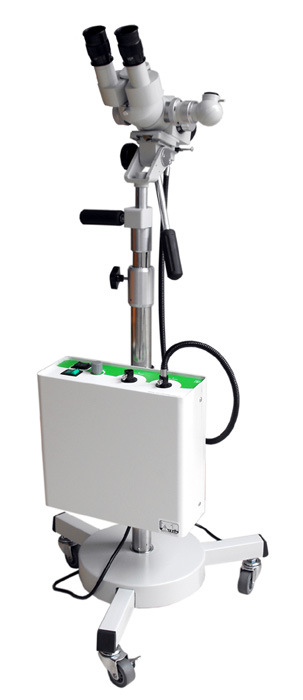

YDJ II-1D Colposcope

Observation angle: 45º tilted binocular observation unit
Magnification of eyepiece: 16 X
Focal length of objective: F=230mm & 280mm (connecting screw: M58x0.75)
Working distance: 215mm & 260mm
Magnification changer:  5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total magnification: 2.9X-21.7X
Linear field: 11mm-84mm
Beamsplitter: 50:50 Beamsplitter
Demonstrator: Optional
TV adapter: C-mount 1/3″ CCD camera attachable
Photo adapter: Optional
Fine focusing distance: 60mm
Balanced arm: No
Illumination system:  Coaxial illumination with cold light source fiber-optic cable, 21V/150W halogen lamp, brightness adjustable
Light intensity: >15,000lux
Filter: Built-in Green and Blue.
Fiber-optic cable Length: 1300mm
Stand:  Column height adjustable fitted on the round base with 3 jaws
Power supply: AC100V-240V/50-60Hz

Warranty: Comes with 5 Years Manufacturer’s Warranty

Table of Specification for YDJ Series Colposcope:

Table of Optical Characteristics for YDJ Ⅱ-1D
