설명
Medical Microscope
3 Step Magnification (3X-12X) Portable ENT Surgical Operation Microscope W/ LED Coaxial Illumination
YSX-103L
YSX L Series Operation Microscopes using LED coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, ophthalmology, gynecology and surgery.

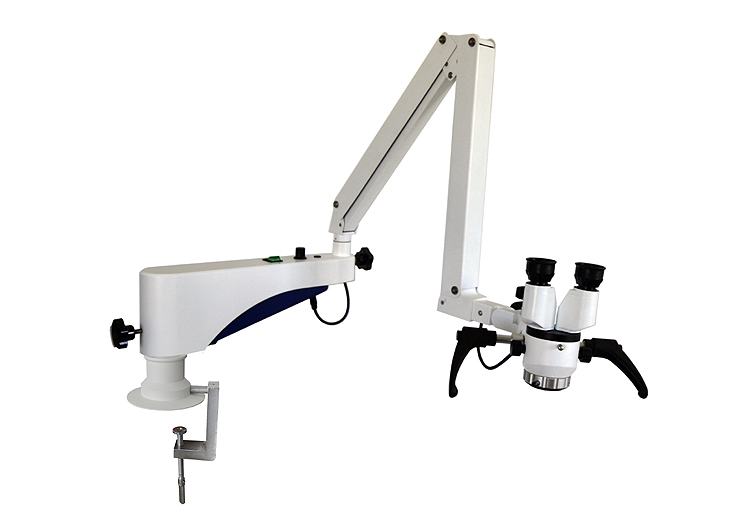

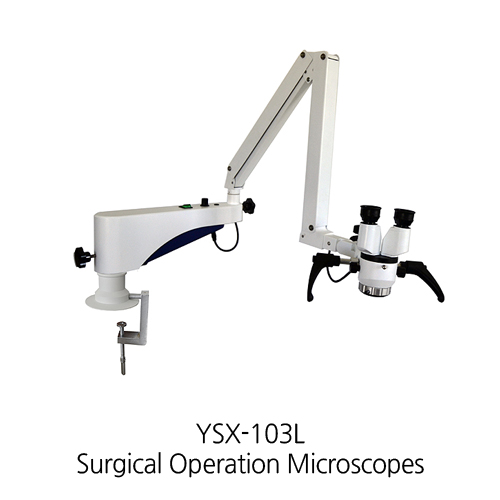

YSX-103L Table Mounted ENT Surgical Operation Microscope/Portable ENT Microscope
Observation angle: Straight
Magnification of observation: 6X
Focal length of objective: F=200mm, 250mm, 300mm, 400mm four objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Fine focusing distance: 10mm
Illumination: LED coaxial illumination with brightness adjustable
Lamp: 10W LED lamp
Filter: Built-in green and yellow filter
With 2-part arm and table clamp
| Table of Specification for YSX Series Operation Microscope: | ||||||
|
Item |
YSX101 |
YSX102 |
YSX103 |
YXS104 |
YSX120 |
YSX130 |
|
Binocular observation |
Straight |
45º Tilted |
Straight |
45º Tilted |
Straight |
45º Tilted |
|
Magnification of binocular |
6X |
|||||
|
Interpupillary distance |
50mm-80mm |
|||||
|
Diopter |
±5D |
|||||
|
Magnification changer |
3-step magnification change: 0.6X,1X,1.6X |
|||||
|
Focal length of objective |
Two objectives: F=200 & F=300mm (M45x0.75mm) |
|||||
|
Total magnification |
3X, 5X, 8X, 4.7X, 7.5X, 12X |
|||||
|
Linear field |
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
|||||
|
Beamsplitter |
No |
50:50 Beamsplitter |
||||
|
Video camera adapter |
C-mount 1/3 inch video camera attachable |
|||||
|
Fine focusing range |
10mm |
|||||
|
Filter |
Built-in green and yellow filters |
|||||
|
Balancing arm |
2-part arm with universal joints |
2-part arm with universal joints, counterweight adjustable and can be locked |
||||
|
Illumination system |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30,000lx | |||||
|
Stand |
2-part column fitted on the five-star base with casters |
Table mount clamp |
2-part column fitted on the five-star base with casters |
|||
|
Optional accessories |
Demonstrator, Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket | |||||
| Table of Optical Characteristics for YSX Series Operation Microscope: | ||||||||||||
|
Focal length of objective |
F=200mm |
F=250mm(optional) |
F=300mm |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
12X |
7.5X |
4.7X |
9.6X |
6X |
3.7X |
8X |
5X |
3X |
6X |
3.8X |
2.3X |
|
Linear field (mm) |
15.8 |
25.3 |
40.6 |
19.7 |
31.6 |
50.7 |
23.6 |
37.9 |
60.8 |
31.5 |
50.5 |
81 |
|
Exit pupil diameter (mm) |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
||||
|
Exit pupil distance (mm) |
15.3 |
|||||||||||
|
Resolution (LP/mm) |
67 |
44.5 |
29.7 |
60 |
35.4 |
27 |
47.2 |
31.5 |
23.6 |
35 |
27 |
19.8 |
