설명
Medical Microscope

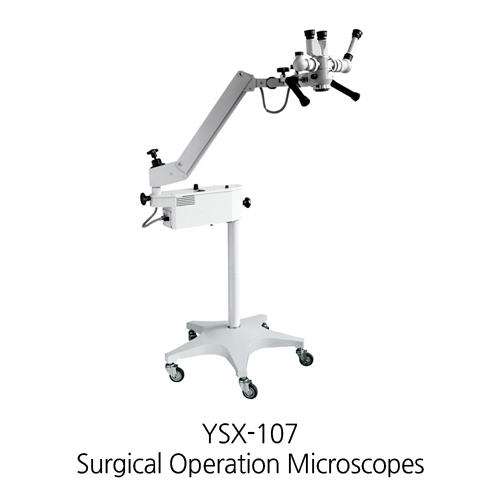

3 Step Magnification (2.4X-12X) ENT Surgical Operation Microscope W/ Straight Observation Angle
YSX-107
YSX Series Operation Microscopes using fibre-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, ophthalmology, gynecology and surgery.

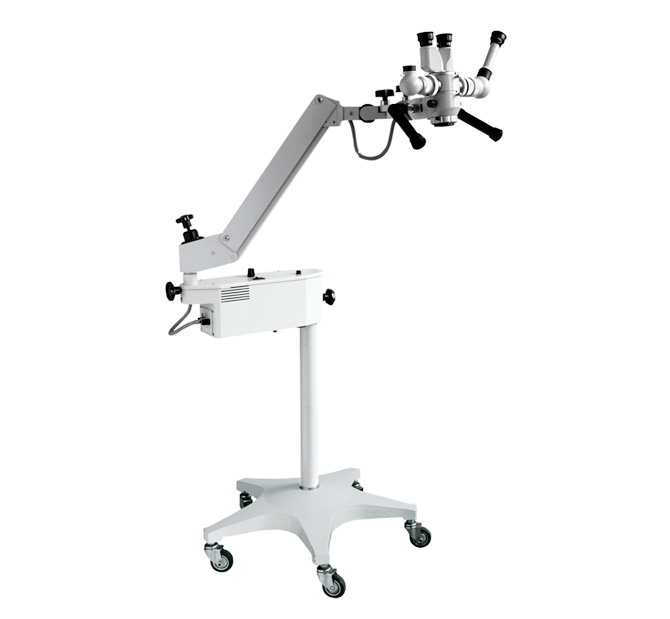

YSX-107 ENT Operation Microscope
Observation angle: Straight
Magnification of observation: 6X
Focal length of objective: F=200mm, 250mm, 300mm, 400mm four objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 2.4X-12X
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With beamsplitter, TV adapter. Demonstrator optional
With 1-part arm, counterweight adjustable and can be locked
With floor stand. Column is short
Specification for YSX Series Operation Microscope
|
Item No. |
YSX-101 |
YSX-102 |
YSX-103 |
YXS-104 |
YSX-107 |
YSX-108 |
YSX-120 |
YSX-130 |
|
Binocular observation |
Straight |
45 Degree |
Straight |
45 Degree |
Straight |
45 Degree |
Straight |
45 Degree |
|
Magnification of Observation |
6X |
|||||||
|
Magnification changer |
3-step magnification change: 0.6X,1X,1.6X |
|||||||
|
Focal length of objective |
4 objectives: F=200,250,300,400mm. Connecting screw: M38x0.75 |
4 objectives: F=200,250,300,400mm. Connecting screw: M45x0.75 |
||||||
|
Total magnification |
2.4X-12X |
|||||||
|
Beamsplitter |
No |
50:50 Beamsplitter |
||||||
|
Demonstrator |
Optional |
|||||||
|
TV adapter |
C-mount 1/3 inch CCD camera attachable |
|||||||
|
Photo adapter |
Optional |
|||||||
|
Fine focusing range |
10mm |
|||||||
|
Filter |
Built-in green and yellow filters |
|||||||
|
Balancing arm |
2-part arm |
1-part arm, |
2-part arm, |
|||||
|
Illumination system |
Coaxial illumination with cold light source fiber-optic cable, |
|||||||
|
Fiber-optic cable |
1600mm |
1300mm |
1700mm |
|||||
|
Stand |
2-part column fitted |
Table mount |
1-part column fitted |
2-part column fitted |
||||
