설명
Medical Microscope

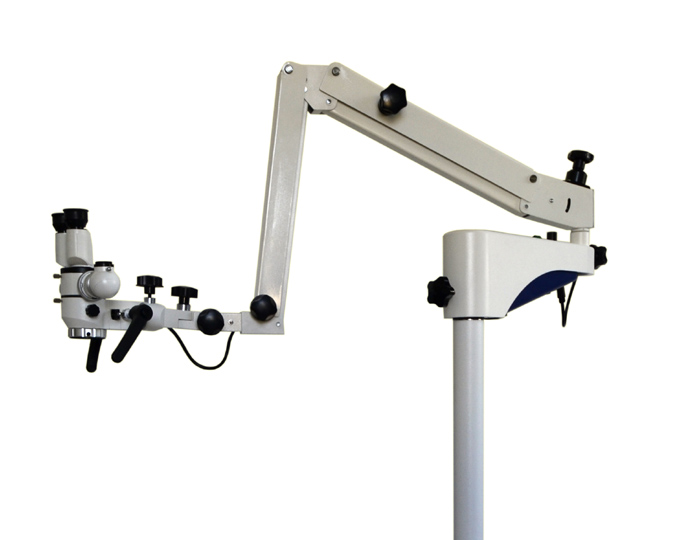

3 Step Magnification (3X-12X) ENT Surgical Operation Microscope W/ LED Coaxial Illumination
YSX-120L
YSX L Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

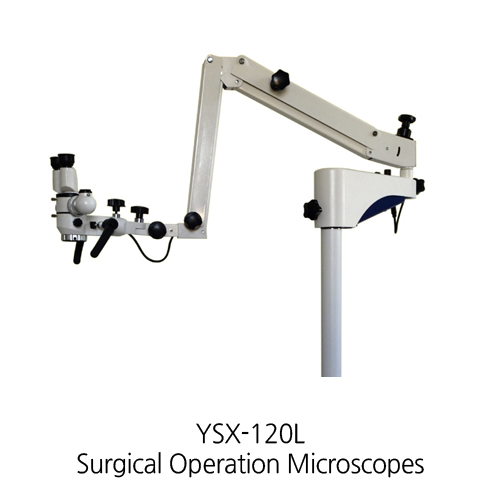

YSX-120L 3 Step Magnification (3X-12X) ENT Surgical Operation Microscopes
Observation angle: Straight
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with LED light source, brightness adjustable
Power of lamp: 10W LED
Filter: Build-in green and yellow filter
With beamsplitter and TV adapter, C-mount 1/3 inch CCD camera attachable
With 2-part arm, counterweight adjustable and can be locked
With floor stand.
Power supply: AC220V-50HZ/AC110V-60HZ
Optional accessories:
– Demonstrator
– Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200)
– Photo adapter
– Monitor H1766
– Objective F=250mm & F=400mm
| Table of Specification for YSX Series Operation Microscope: | ||||||
|
Item |
YSX101 |
YSX102 |
YSX103 |
YXS104 |
YSX120 |
YSX130 |
|
Binocular observation |
Straight |
45º Tilted |
Straight |
45º Tilted |
Straight |
45º Tilted |
|
Magnification of binocular |
6X |
|||||
|
Interpupillary distance |
50mm-80mm |
|||||
|
Diopter |
±5D |
|||||
|
Magnification changer |
3-step magnification change: 0.6X,1X,1.6X |
|||||
|
Focal length of objective |
Two objectives: F=200 & F=300mm (M45x0.75mm) |
|||||
|
Total magnification |
3X, 5X, 8X, 4.7X, 7.5X, 12X |
|||||
|
Linear field |
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
|||||
|
Beamsplitter |
No |
50:50 Beamsplitter |
||||
|
Video camera adapter |
C-mount 1/3 inch video camera attachable |
|||||
|
Fine focusing range |
10mm |
|||||
|
Filter |
Built-in green and yellow filters |
|||||
|
Balancing arm |
2-part arm with universal joints |
2-part arm with universal joints, counterweight adjustable and can be locked |
||||
|
Illumination system |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30,000lx | |||||
|
Stand |
2-part column fitted on the five-star base with casters |
Table mount clamp |
2-part column fitted on the five-star base with casters |
|||
|
Optional accessories |
Demonstrator, Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket | |||||
| Table of Optical Characteristics for YSX Series Operation Microscope: | ||||||||||||
|
Focal length of objective |
F=200mm |
F=250mm(optional) |
F=300mm |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
12X |
7.5X |
4.7X |
9.6X |
6X |
3.7X |
8X |
5X |
3X |
6X |
3.8X |
2.3X |
|
Linear field (mm) |
15.8 |
25.3 |
40.6 |
19.7 |
31.6 |
50.7 |
23.6 |
37.9 |
60.8 |
31.5 |
50.5 |
81 |
|
Exit pupil diameter (mm) |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
||||
|
Exit pupil distance (mm) |
15.3 |
|||||||||||
|
Resolution (LP/mm) |
67 |
44.5 |
29.7 |
60 |
35.4 |
27 |
47.2 |
31.5 |
23.6 |
35 |
27 |
19.8 |
