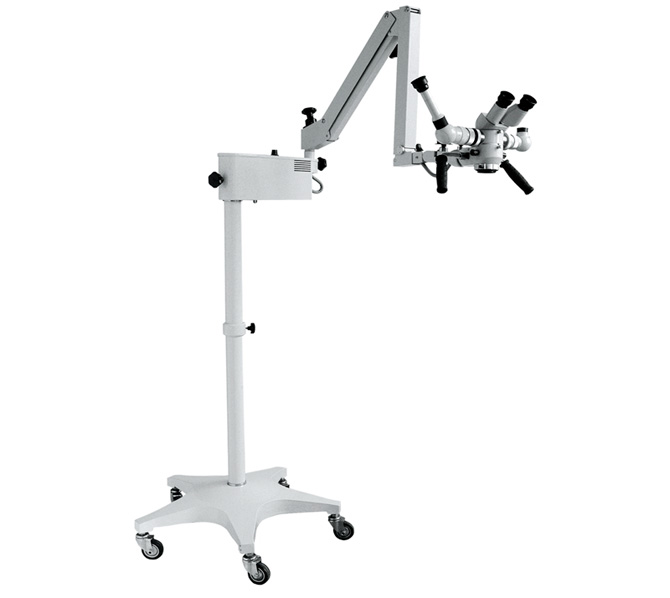

[YSX-130] 3 Step Magnification (3X-12X) Dental and Ophthalmic Surgial Microscope W/ 45 Degree Observation Angle
₩4,219,000
설명
Medical Microscope
3 Step Magnification (3X-12X) Dental and Ophthalmic Surgial Microscope W/ 45 Degree Observation Angle
YSX-130
YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

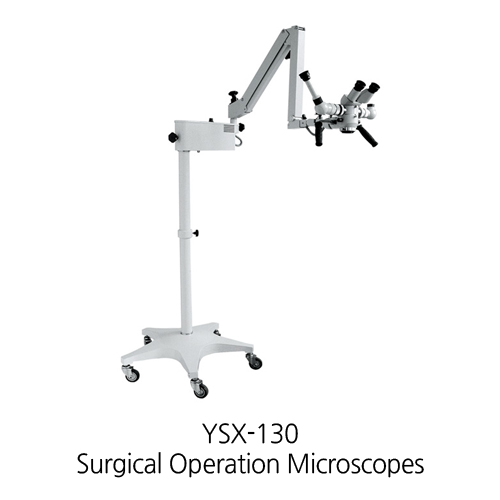

YSX-130 Dental and Ophthalmic Surgial Operation Microscope
Observation angle: Straight
Magnification of binocular: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination > 30,000lx
Filter: Build-in green and yellow filters
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V
Optional accessories:
Beamsplitter, Video camera adapter, Demonstrator,
Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter,
Monitor (S22E360H, X22, H1766)
Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective
Table mount clamp, Wall mount bracket
Specification for YSX Series Operation Microscope
| Table of Specification for YSX Series Operation Microscope: | ||||||
|
Item |
YSX101 |
YSX102 |
YSX103 |
YXS104 |
YSX120 |
YSX130 |
|
Binocular observation |
Straight |
45º Tilted |
Straight |
45º Tilted |
Straight |
45º Tilted |
|
Magnification of binocular |
6X |
|||||
|
Interpupillary distance |
50mm-80mm |
|||||
|
Diopter |
±5D |
|||||
|
Magnification changer |
3-step magnification change: 0.6X,1X,1.6X |
|||||
|
Focal length of objective |
Two objectives: F=200 & F=300mm (M45x0.75mm) |
|||||
|
Total magnification |
3X, 5X, 8X, 4.7X, 7.5X, 12X |
|||||
|
Linear field |
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
|||||
|
Beamsplitter |
No |
50:50 Beamsplitter |
||||
|
Video camera adapter |
C-mount 1/3 inch video camera attachable |
|||||
|
Fine focusing range |
10mm |
|||||
|
Filter |
Built-in green and yellow filters |
|||||
|
Balancing arm |
2-part arm with universal joints |
2-part arm with universal joints, counterweight adjustable and can be locked |
||||
|
Illumination system |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30,000lx | |||||
|
Stand |
2-part column fitted on the five-star base with casters |
Table mount clamp |
2-part column fitted on the five-star base with casters |
|||
|
Optional accessories |
Demonstrator, Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket | |||||
| Table of Optical Characteristics for YSX Series Operation Microscope: | ||||||||||||
|
Focal length of objective |
F=200mm |
F=250mm(optional) |
F=300mm |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
12X |
7.5X |
4.7X |
9.6X |
6X |
3.7X |
8X |
5X |
3X |
6X |
3.8X |
2.3X |
|
Linear field (mm) |
15.8 |
25.3 |
40.6 |
19.7 |
31.6 |
50.7 |
23.6 |
37.9 |
60.8 |
31.5 |
50.5 |
81 |
|
Exit pupil diameter (mm) |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
1.04 |
1.66 |
||||
|
Exit pupil distance (mm) |
15.3 |
|||||||||||
|
Resolution (LP/mm) |
67 |
44.5 |
29.7 |
60 |
35.4 |
27 |
47.2 |
31.5 |
23.6 |
35 |
27 |
19.8 |
